Headlamp Relay: Testing and Inspection

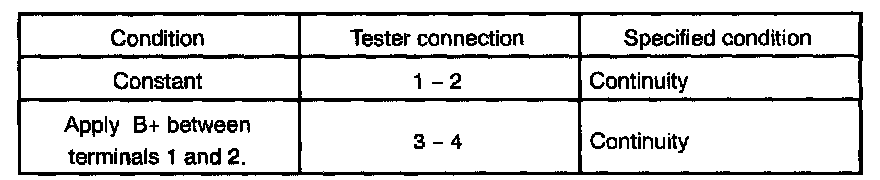

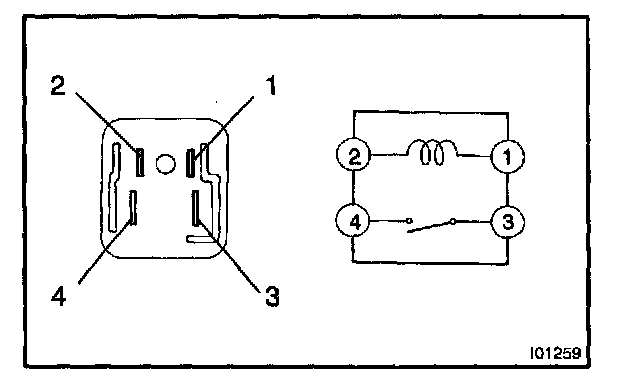

INSPECT HEADLIGHT CONTROL RELAY CONTINUITY
It continuity is not as specified, replace the relay.
