Daytime Running Lamp Relay: Testing and Inspection

CANADA models:
INSPECT DAYTIME RUNNING LIGHT MAIN RELAY CIRCUIT

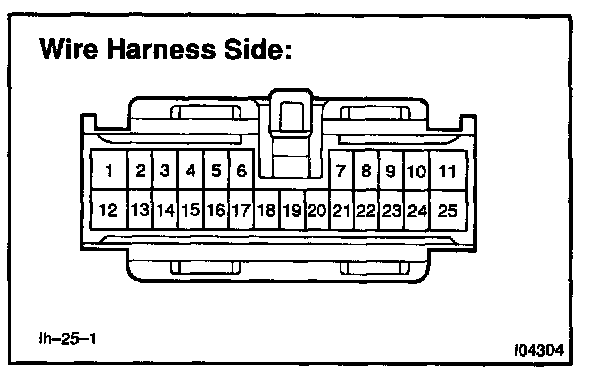

Disconnect the connector from the relay and inspect the connector on the wire harness side.

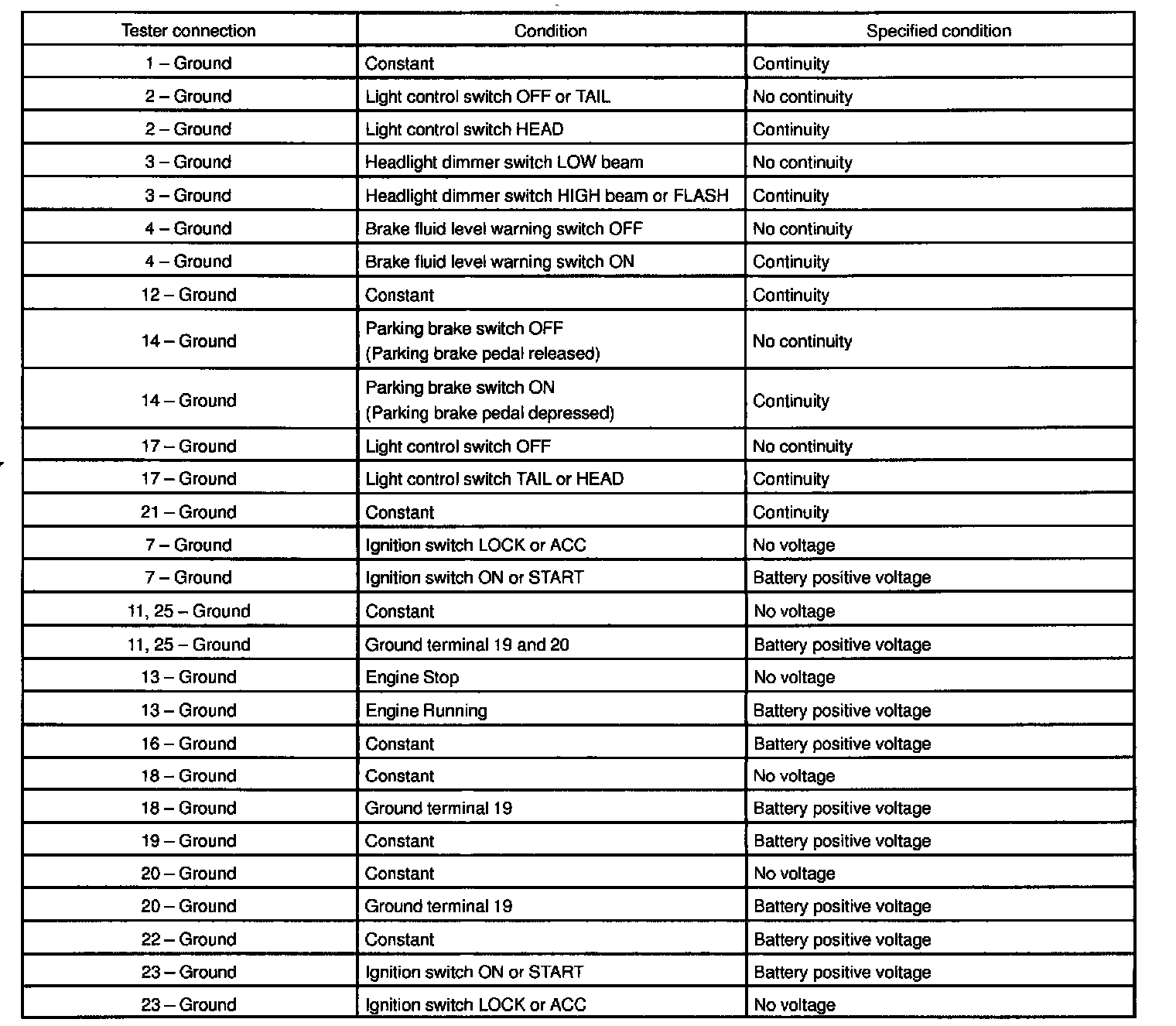

If circuit is as specified, try replacing the sensor with a new one.
If the circuit is not as specified, inspect the circuit connected to other parts.







USA models:
INSPECT DAYTIME RUNNING LIGHT MAIN RELAY CIRCUIT
Disconnect the connector from the relay and inspect the connector on the wire harness side
If circuit is as specified, try replacing the sensor with a new one.
If the circuit is not as specified, inspect the circuit connected to other parts.







INSPECT DAYTIME RUNNING LIGHT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
