Condenser Fan Motor Relay: Testing and Inspection

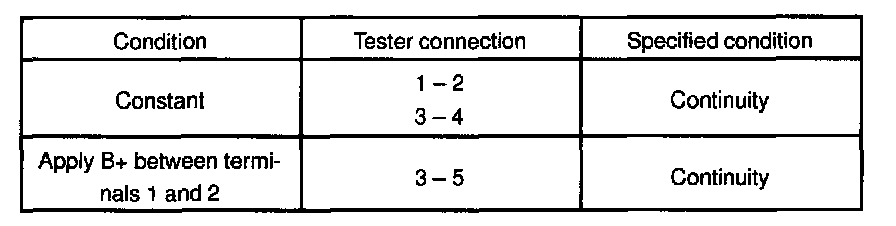

1. INSPECT NO.2 COOLING FAN RELAY (Marking: A.C FAN NO. 2) CONTINUITY
If continuity is not as specified, replace the relay.

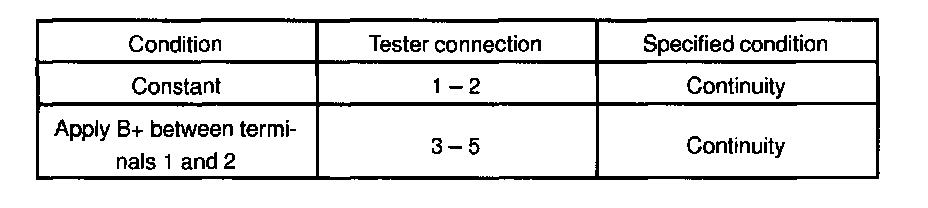

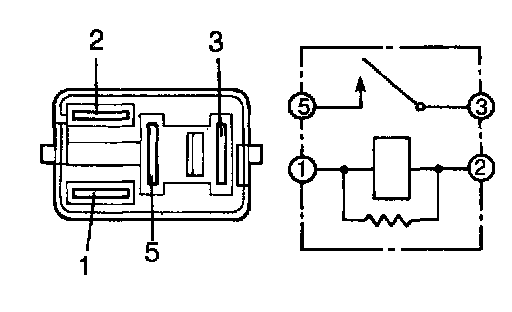

2. INSPECT NO.3 COOLING FAN RELAY (Marking A.C FAN NO. 3) CONTINUITY
If continuity is not as specified, replace relay.
