Radiator Cooling Fan Motor Relay: Service and Repair

REMOVAL

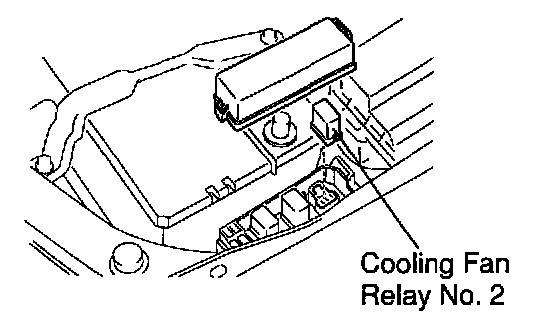

1. REMOVE COOLING FAN RELAY NO.2 FROM RELAY BLOCK NO.5

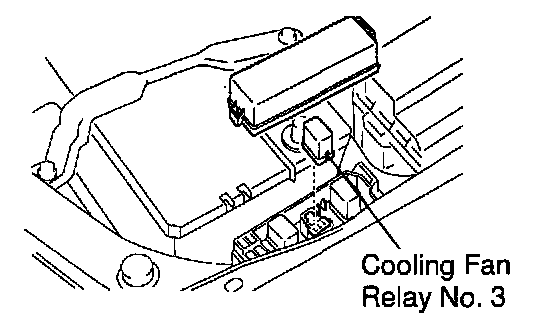

2. REMOVE COOLING FAN RELAY NO.3 FROM RELAY BLOCK NO.5

INSTALLATION
Installation is in the reverse order of Removal.
