Sunroof / Moonroof Relay: Testing and Inspection

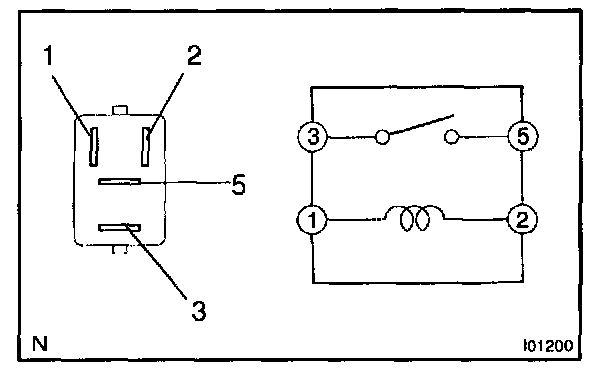

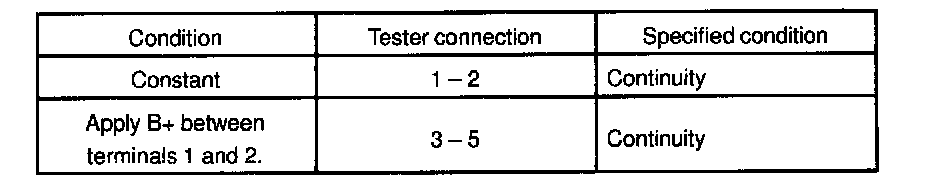

INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.







INSPECT SLIDING ROOF CONTROL RELAY CIRCUIT

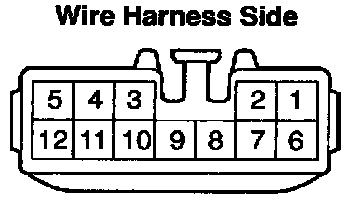

Disconnect the connector from the relay and switch and inspect the connector on the wire harness side, as shown in the chart.
If circuit is not as specified, replace the relay.
