MIL ON - DTC P0446 (EVAP Vent)

ENGINE
EG005-99

Title:
DIAGNOSTIC TROUBLE CODE P0446

Models:
'99 Corolla

May 14, 1999

Introduction

Under certain driving conditions, some 1999 Model Year Corollas will exhibit a false M.I.L. "ON" DTC P0446. A revised ECM has been developed to prevent this condition.

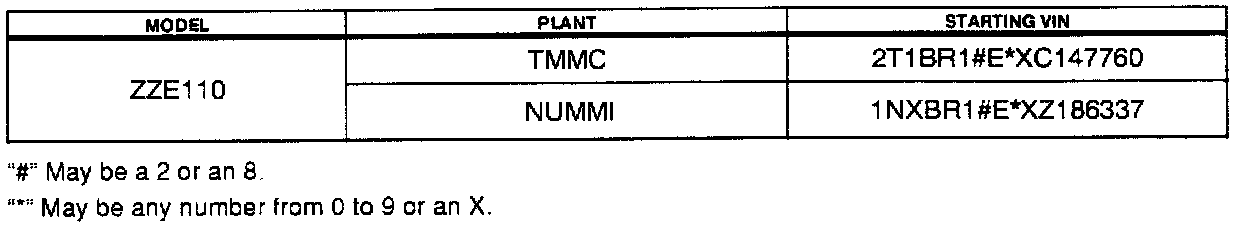

Production Change Information

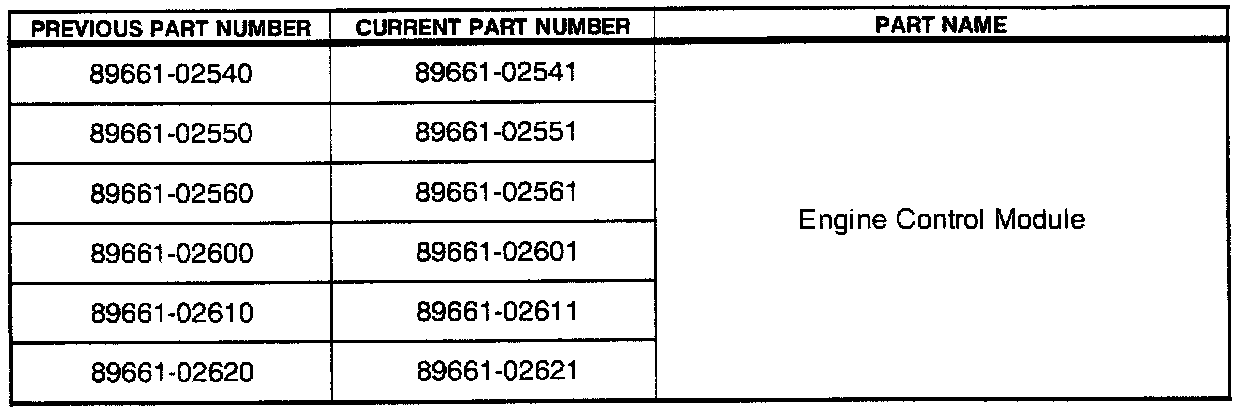

Parts Information

Repair Procedure

1. Verify that the Purge System is operating as specified in the Repair Manual.

2. Check the Part Number of the ECM currently in the vehicle.

3. If the ECM Part Number ends in a "0", replace the ECM with a revised ECM.

NOTE:
Refer to the Part Number Information Table, to determine the proper revised ECM Part Number.

4. After replacing the ECM, verify that the Gas Cap is on securely.

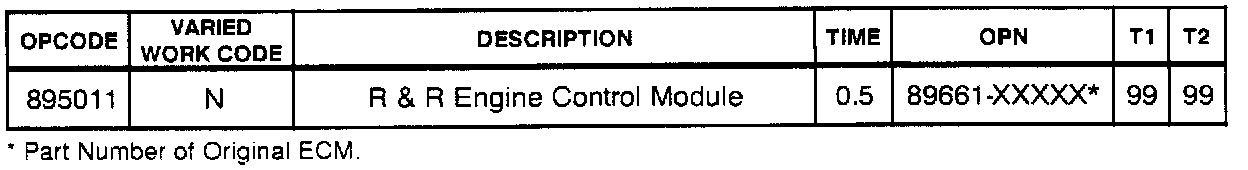

Warranty Information

Applicable Warranty*:

This repair is covered under the Federal Emissions Warranty. This warranty is in effect for 96 months or 80,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customers specific complaint

NOTE:
Please enter the DTC P0446 in the Condition/Cause/Remedy Section when applying for Warranty Reimbursement.
