Removal and Installation of Blower Unit

REMOVAL
1. REMOVE COOLING UNIT, Service and Repair




2. DISCONNECT AIR INLET CONTROL CABLE

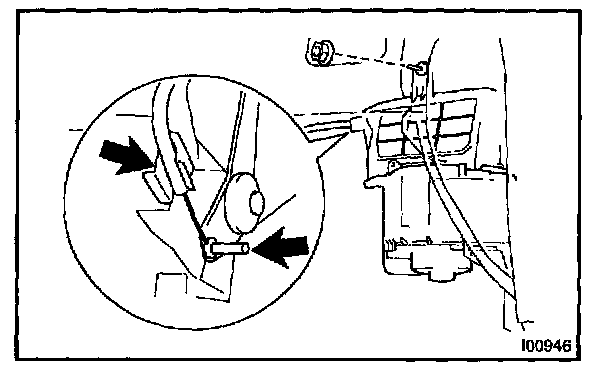

3. REMOVE BLOWER UNIT
a. Disconnect the connectors.
b. Remove the 2 nuts and blower unit.

INSTALLATION

1. INSTALL BLOWER UNIT
a. Install the blower unit with the 2 nuts.
b. Connect the connector.

2. CONNECT AIR INLET CONTROL CABLE
a. Connect the air inlet control cable.




b. Adjust air inlet control cable.
1. Set air inlet damper control lever to "RECIRC" position.
2. Install inner cable to lever pin and clamp the outer cable.

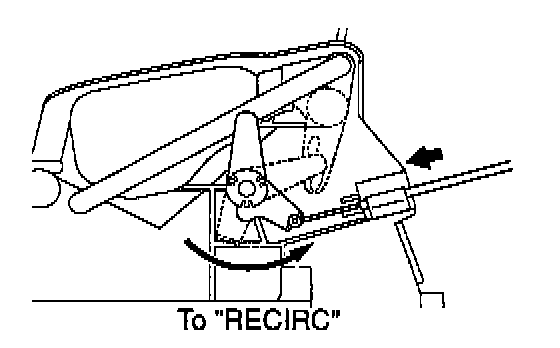

HINT: Lock the clamp while lightly pushing the outer to the direction shown by arrow in the illustration.

3. INSTALL COOLING UNIT
