Blower Motor Resistor: Service and Repair

REMOVAL
1. REMOVE THESE PARTS:
a. Front Door Scuff Plate RH
b. Cowl Side Trim RH
c. Lower Panel




2. REMOVE BLOWER RESISTOR
a. Disconnect the connector.

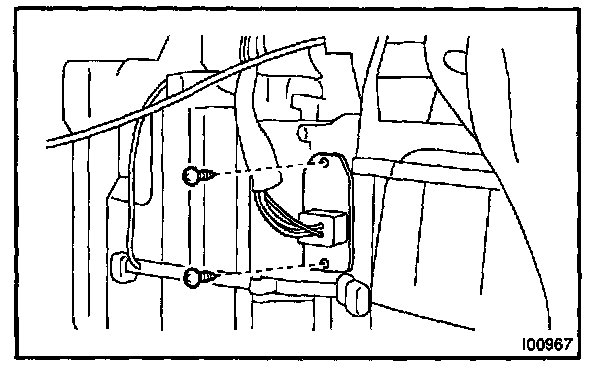

b. Remove the 2 screws and blower resistor.

INSTALLATION




1. INSTALL BLOWER RESISTOR
a. Install the blower resistor with the 2 screws.
b. Connect the connector.

2. INSTALL THESE PARTS:
a. Lower Panel
b. Cowl Side Trim RH
c. Front Door Scuff Plate RH
