Home
>>
Toyota
>>
1999
>>
Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Manual Transaxle Assembly
Manual Transaxle Assembly

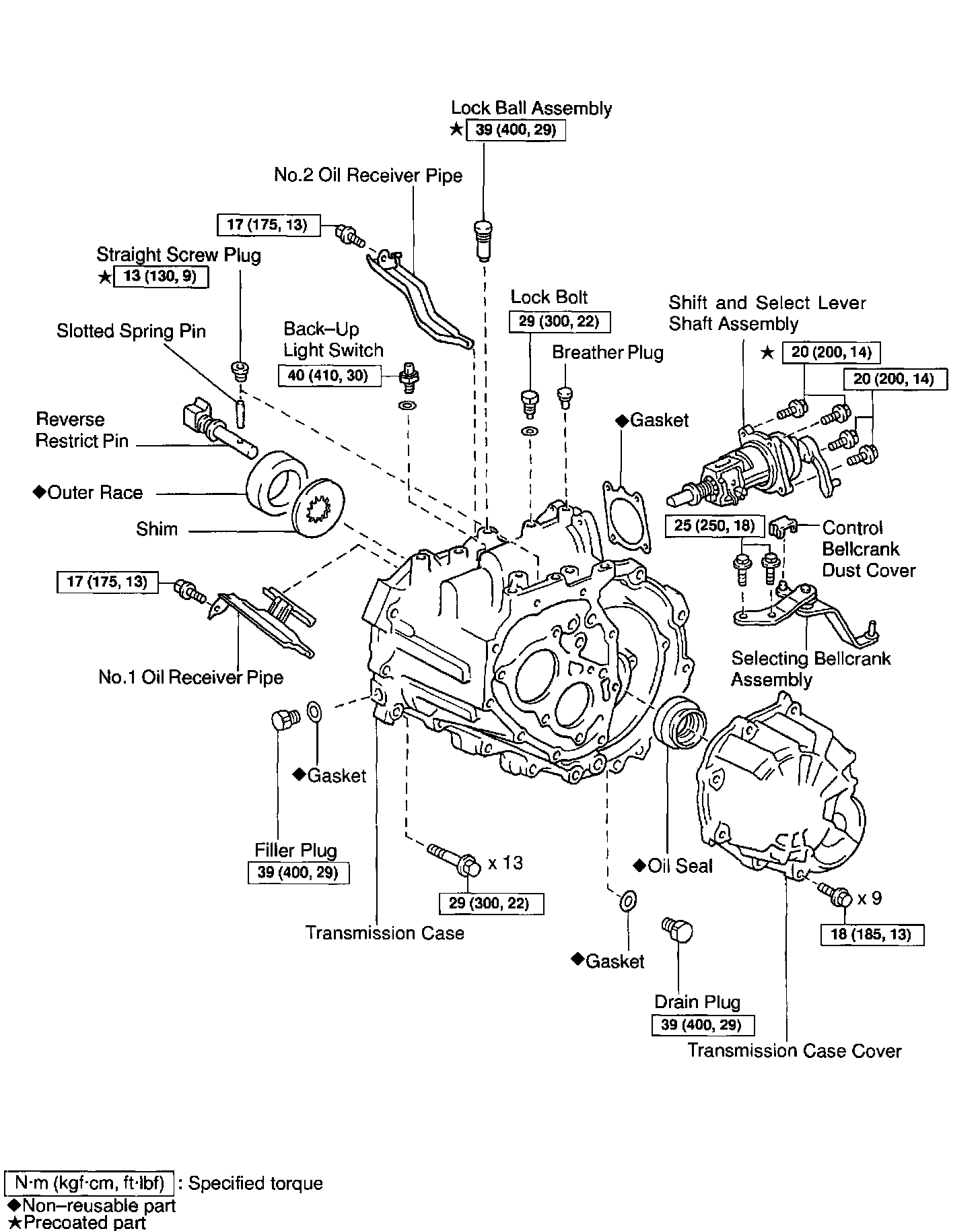

MANUAL TRANSAXLE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
