Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

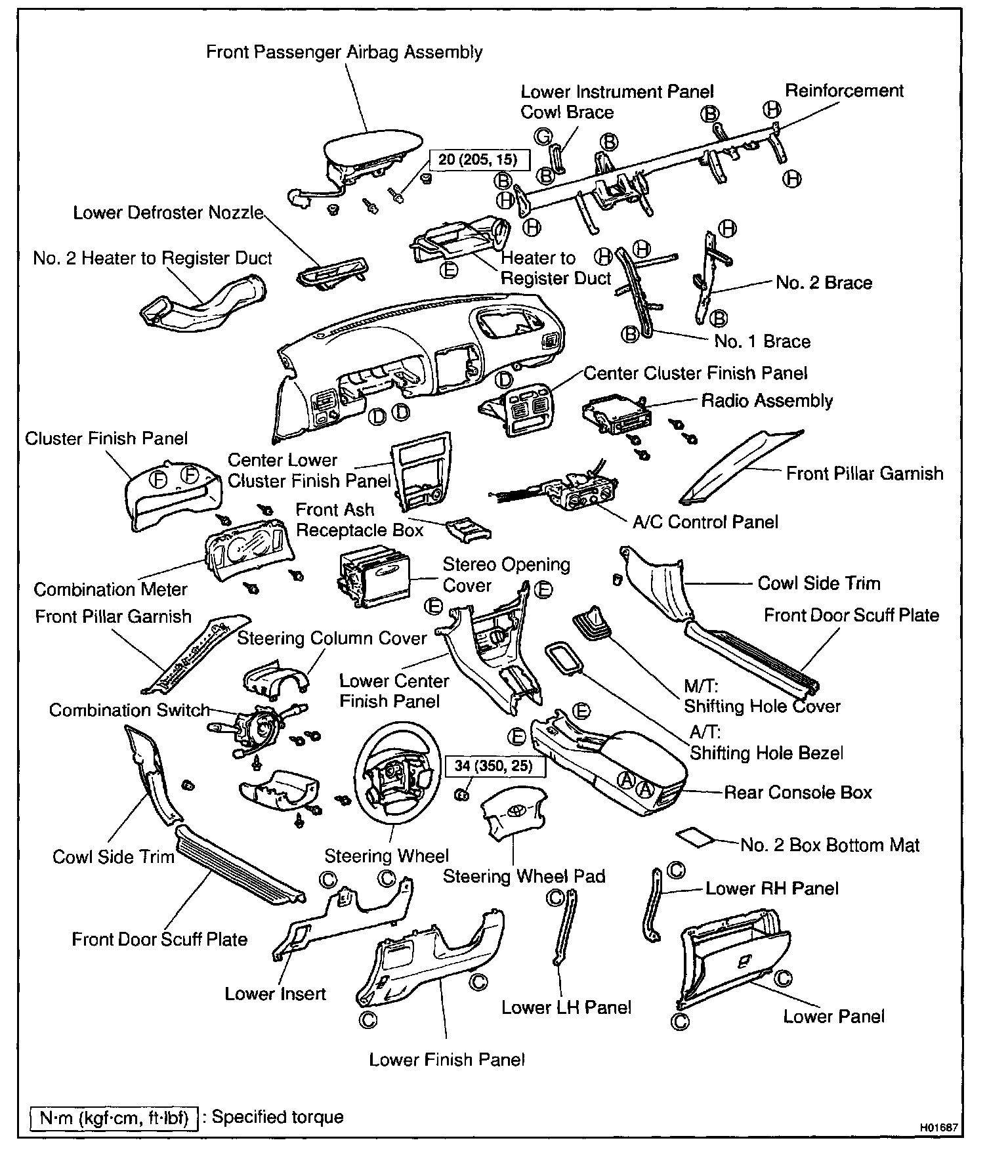

Instrumental Panel Components Part 1:

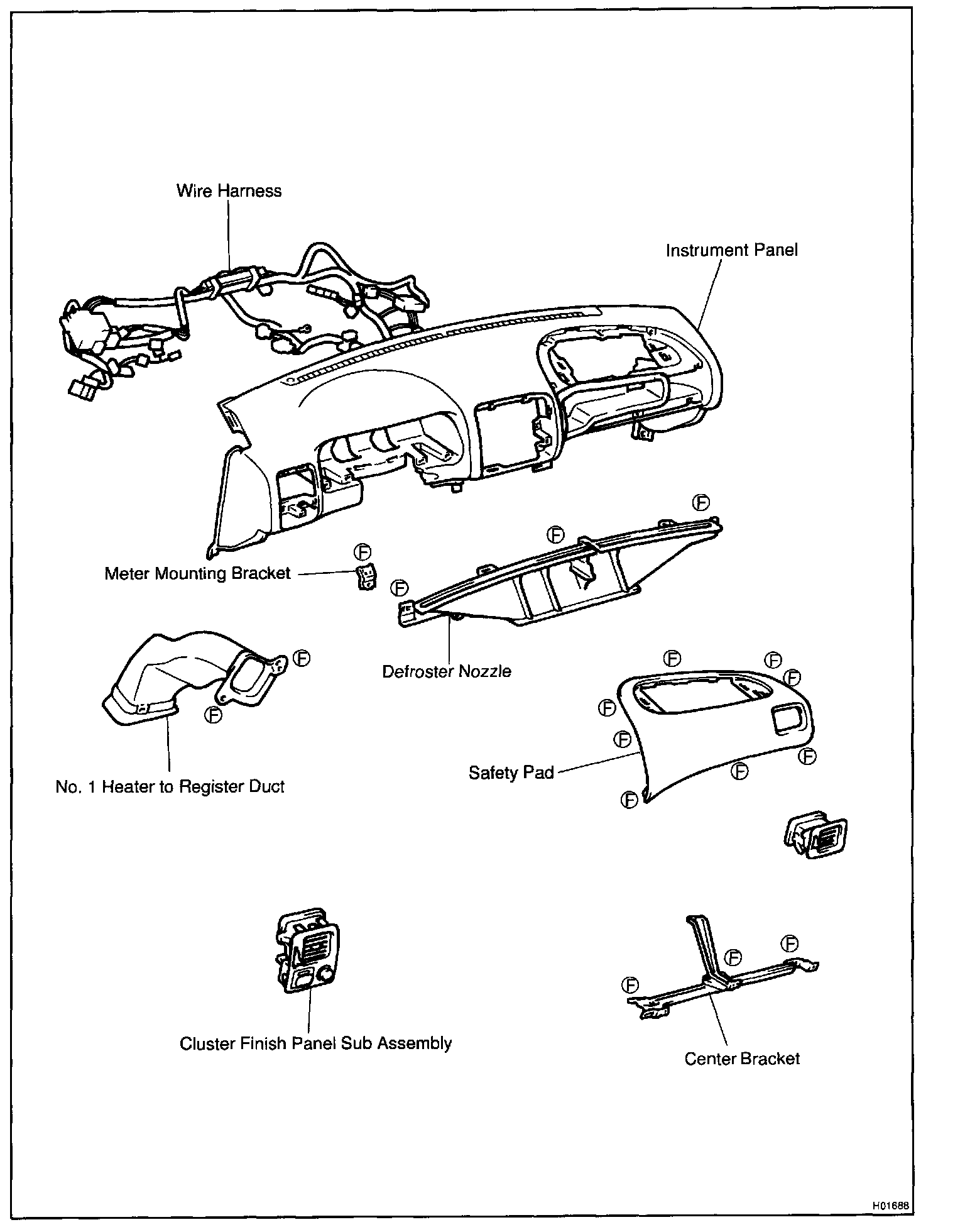

Instrumental Panel Components Part 2:
