DTC 14

DTC 14 OPEN IN SQUIB CIRCUIT




CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

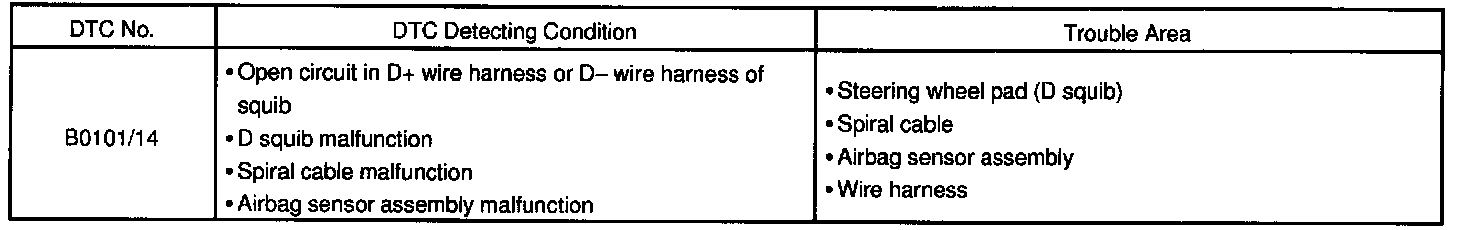

DTC B0101/14 is recorded when an open is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

B0101/14 (1 Of 6):

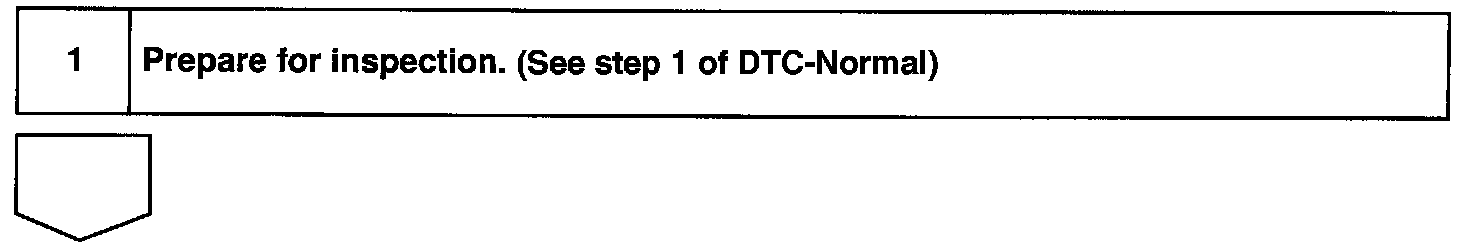

Step 1/Prepare for Inspection

B0101/14 (2 Of 6):

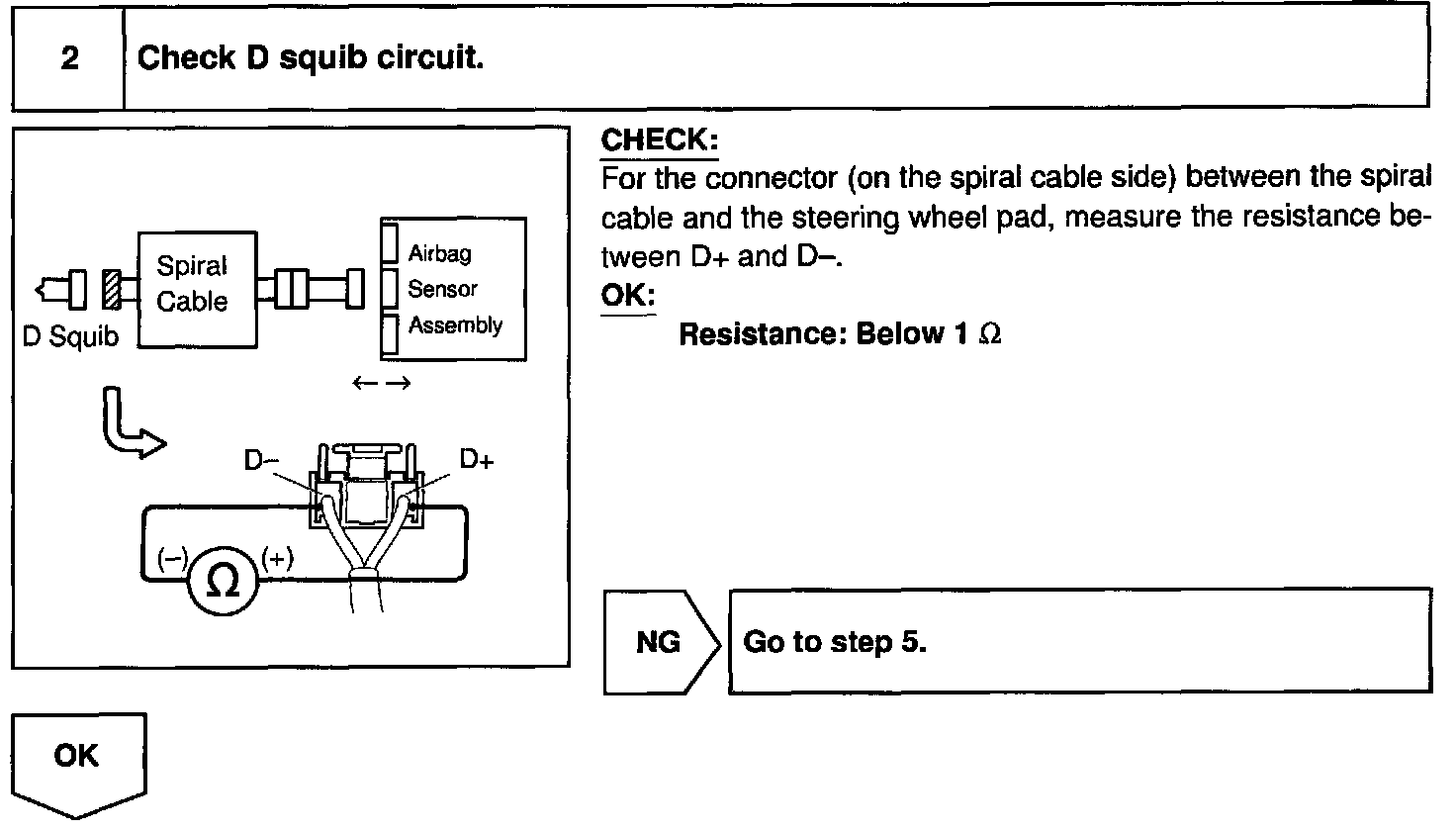

Step 2/Check D squib circuit

B0101/14 (3 Of 6):

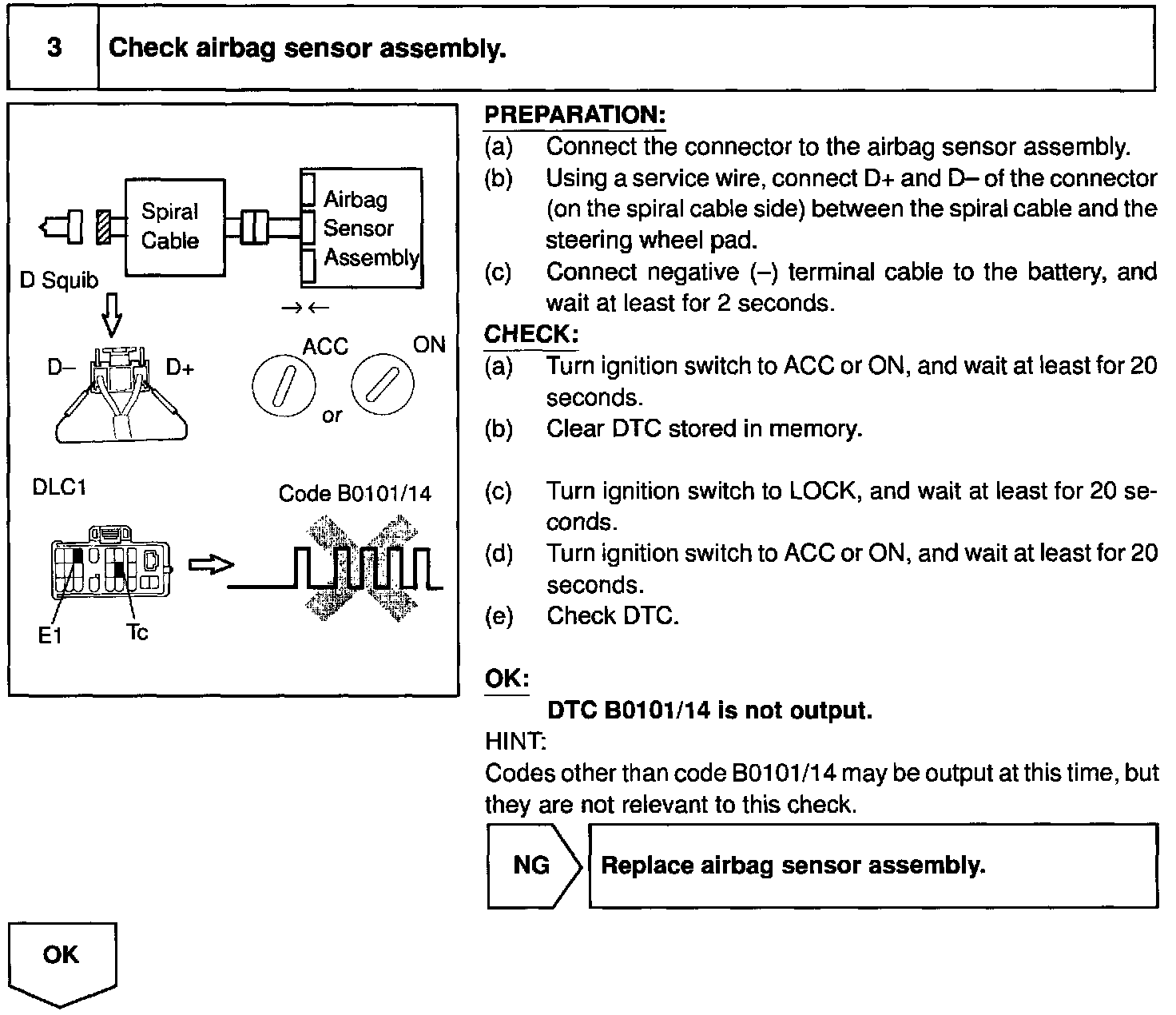

Step 3/Check airbag sensor assembly

B0101/14 (4 Of 6):

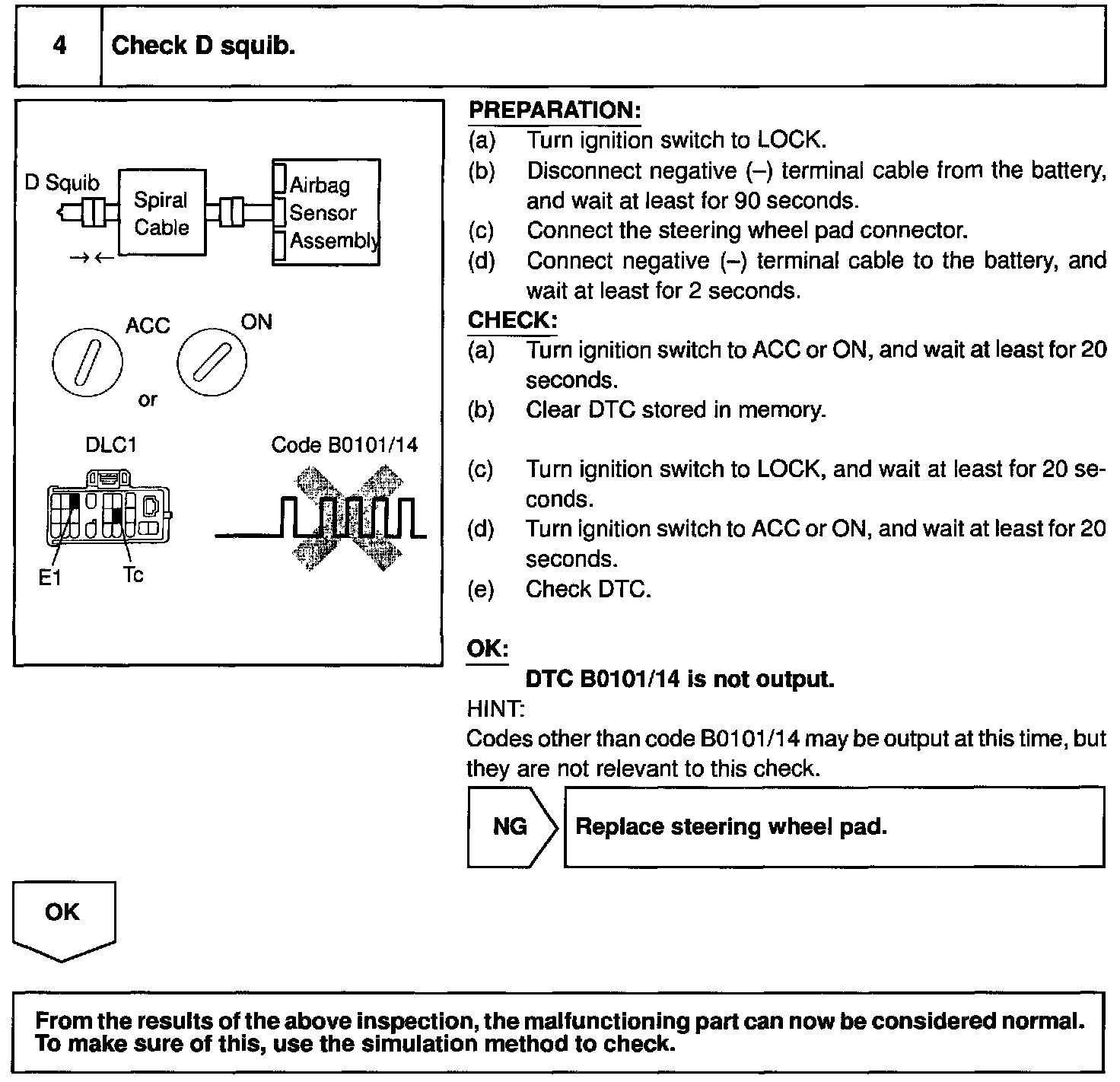

Step 4/Check D squib

B0101/14 (5 Of 6):

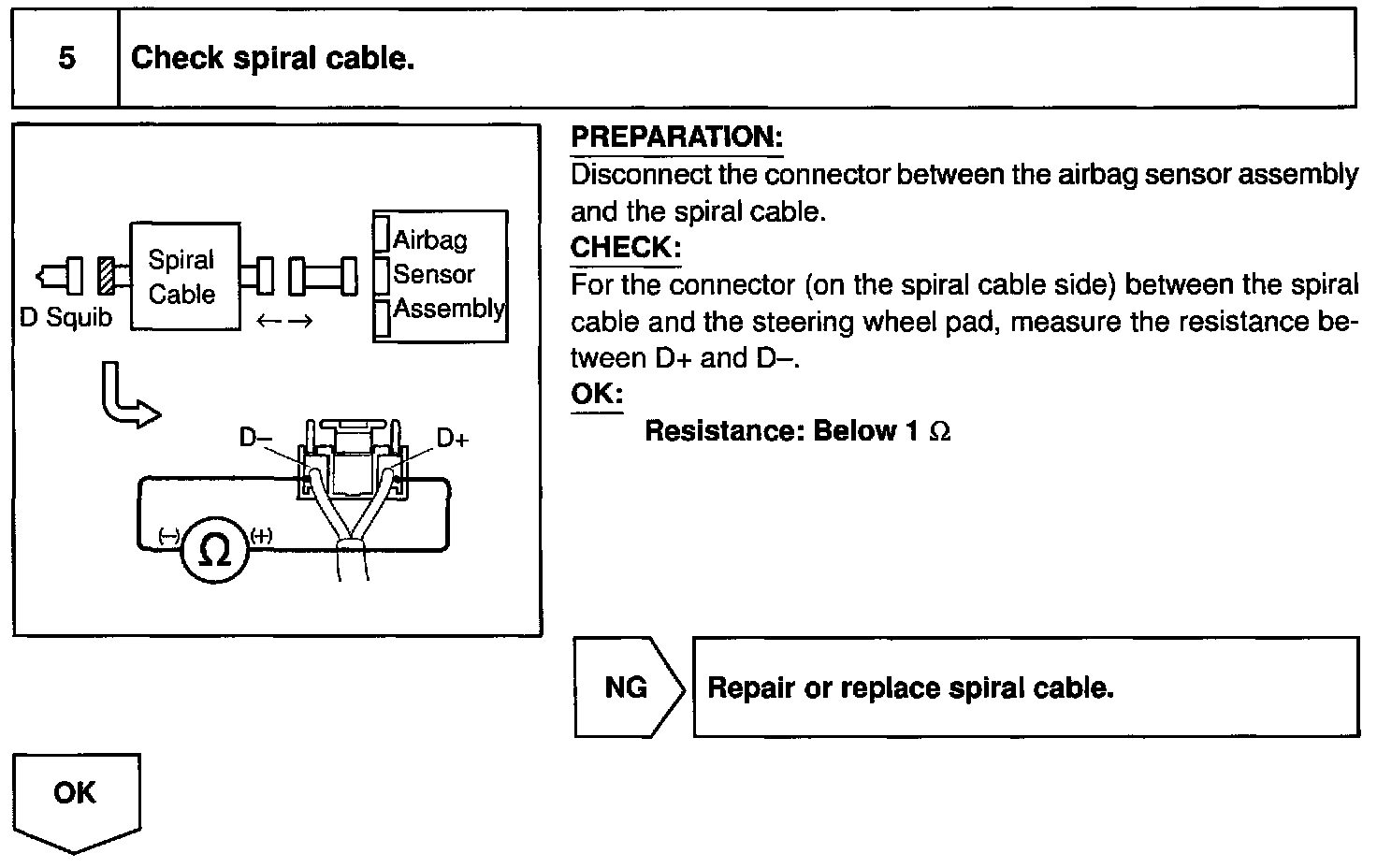

Step 5/Check Spiral Cable

B0101/14 (6 Of 6):

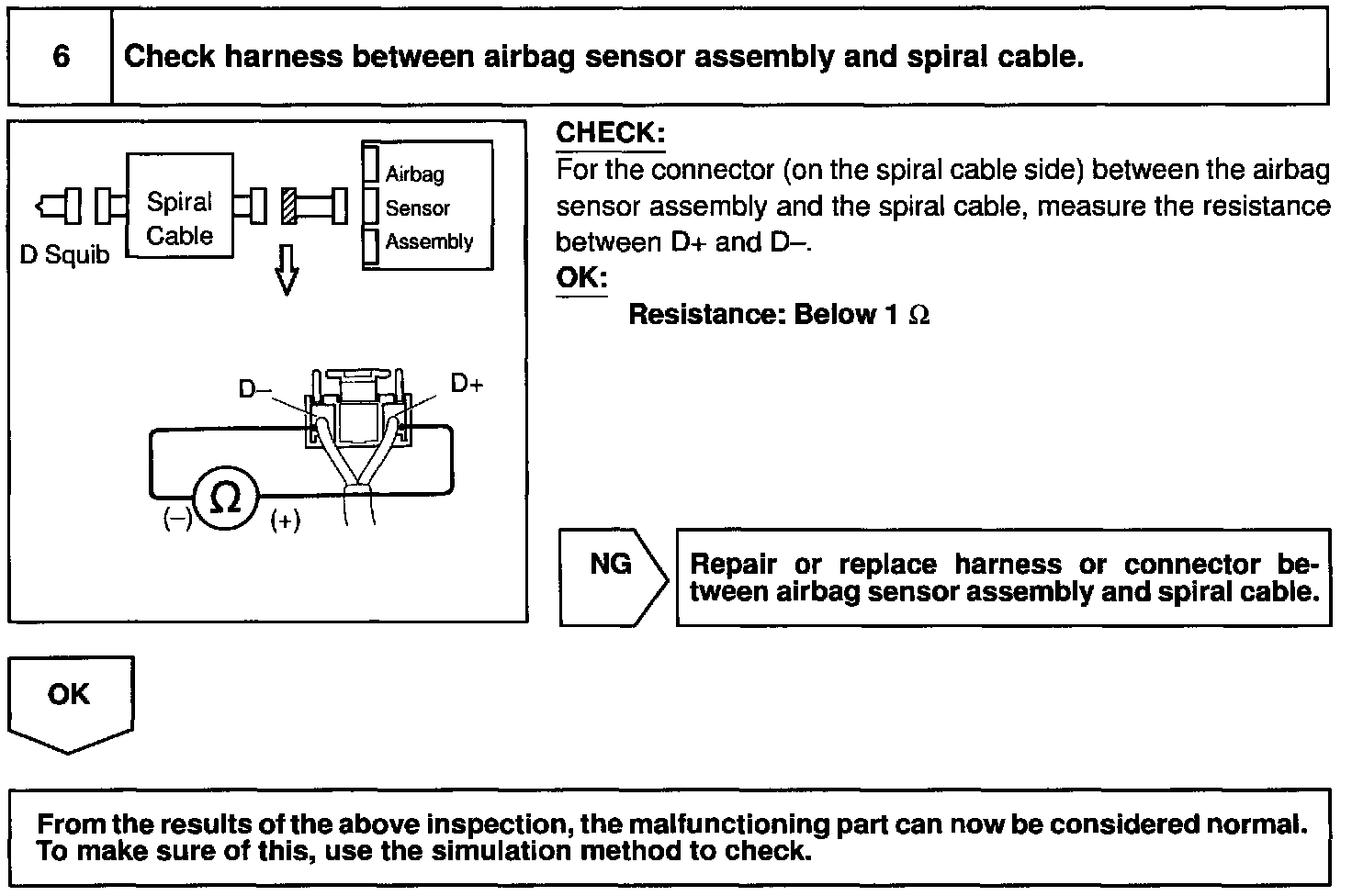

Step 6/Check harness between airbag sensor assembly and spiral cable
