DTC 13

DTC 13 Short in D Squib Circuit




CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each component, see OPERATION.
DTC B0100/13 is recorded when a short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

B0100/13 (1 Of 6):

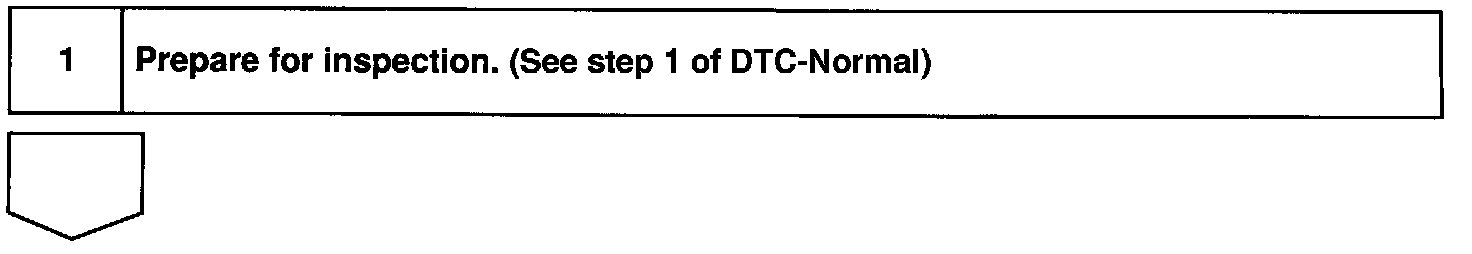

Step 1/Prepare for Inspection

B0100/13 (2 Of 6):

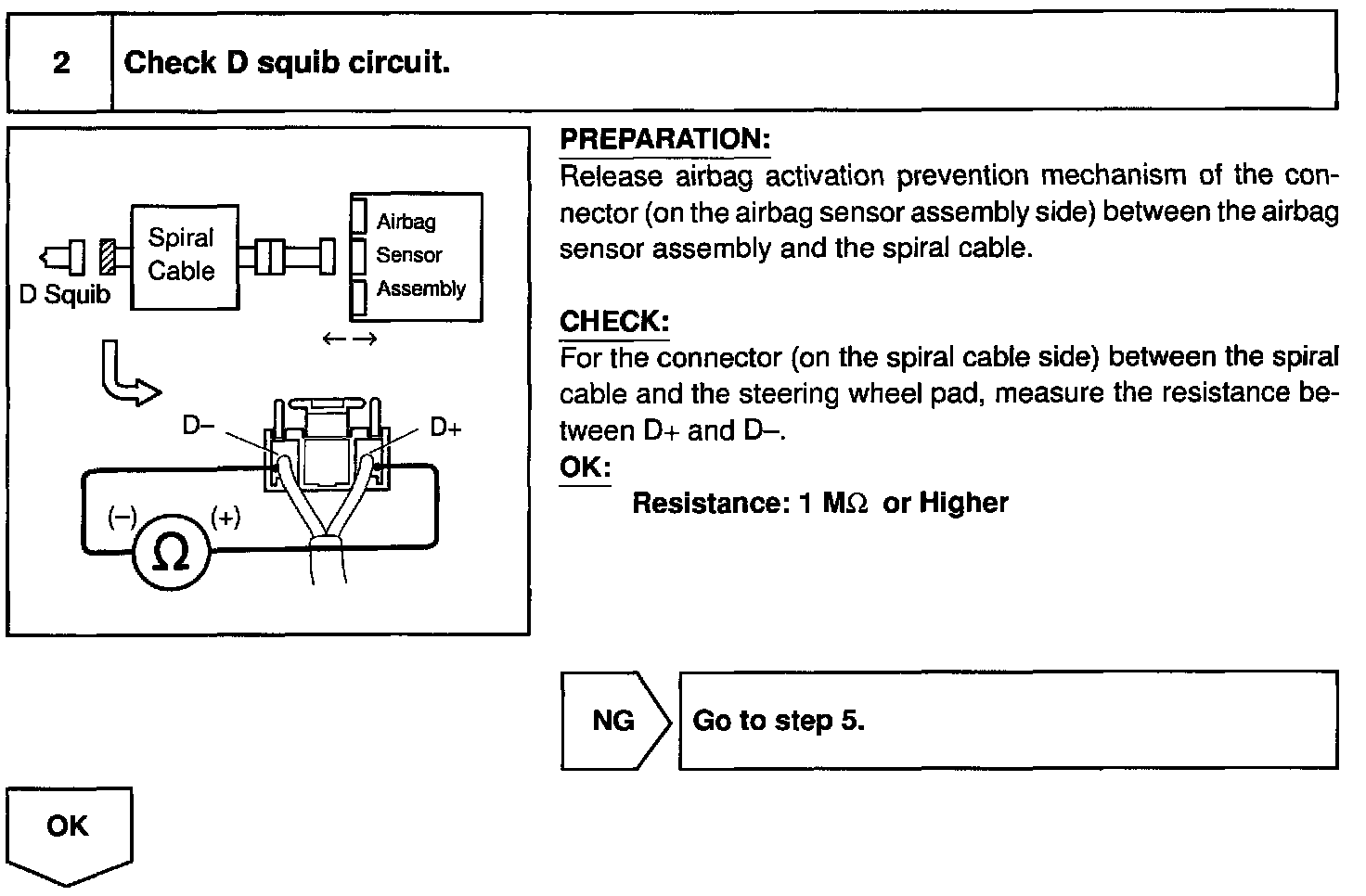

Step 2/Check D squib circuit

B0100/13 (3 Of 6):

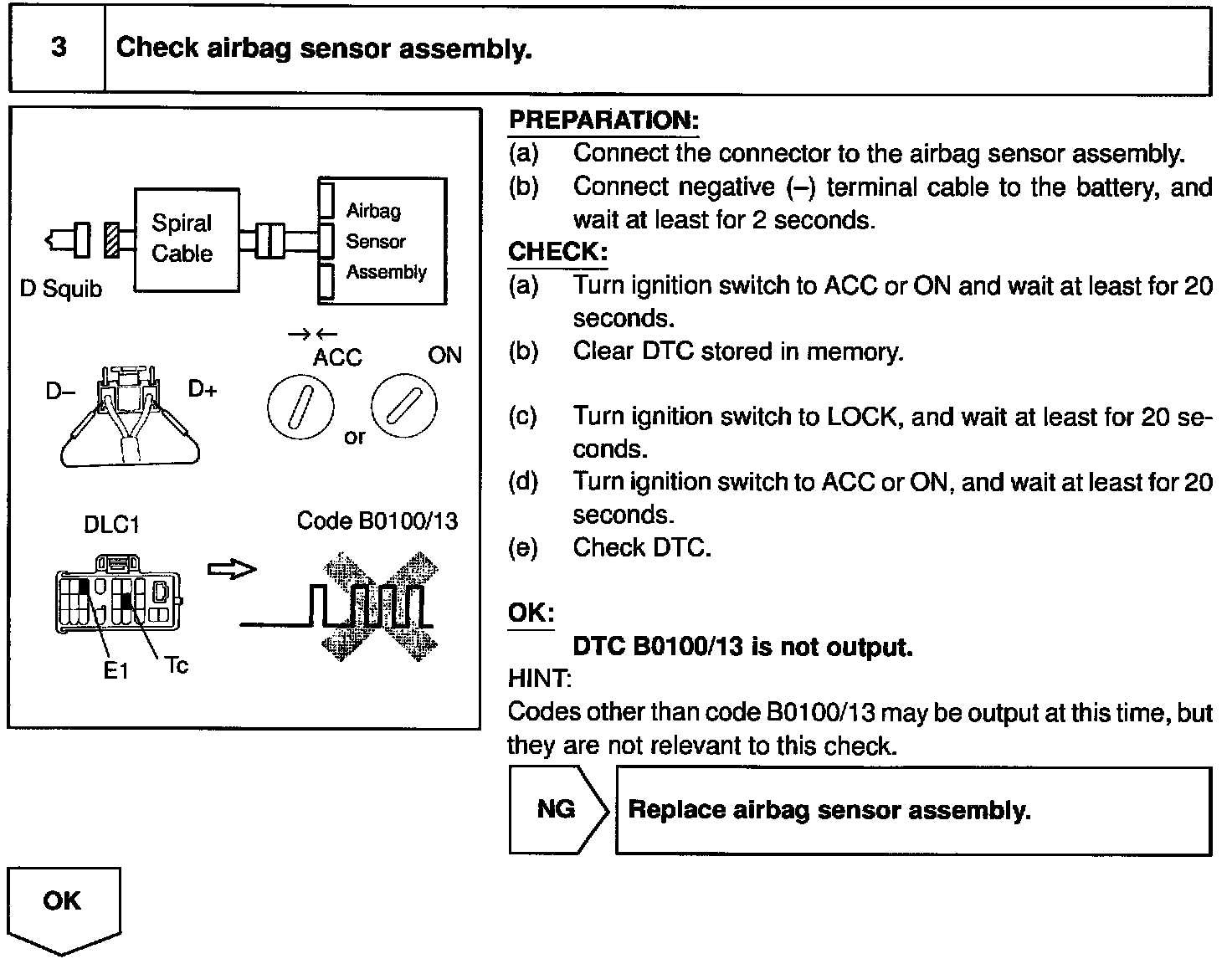

Step 3/Check airbag sensor assembly

B0100/13 (4 Of 6):

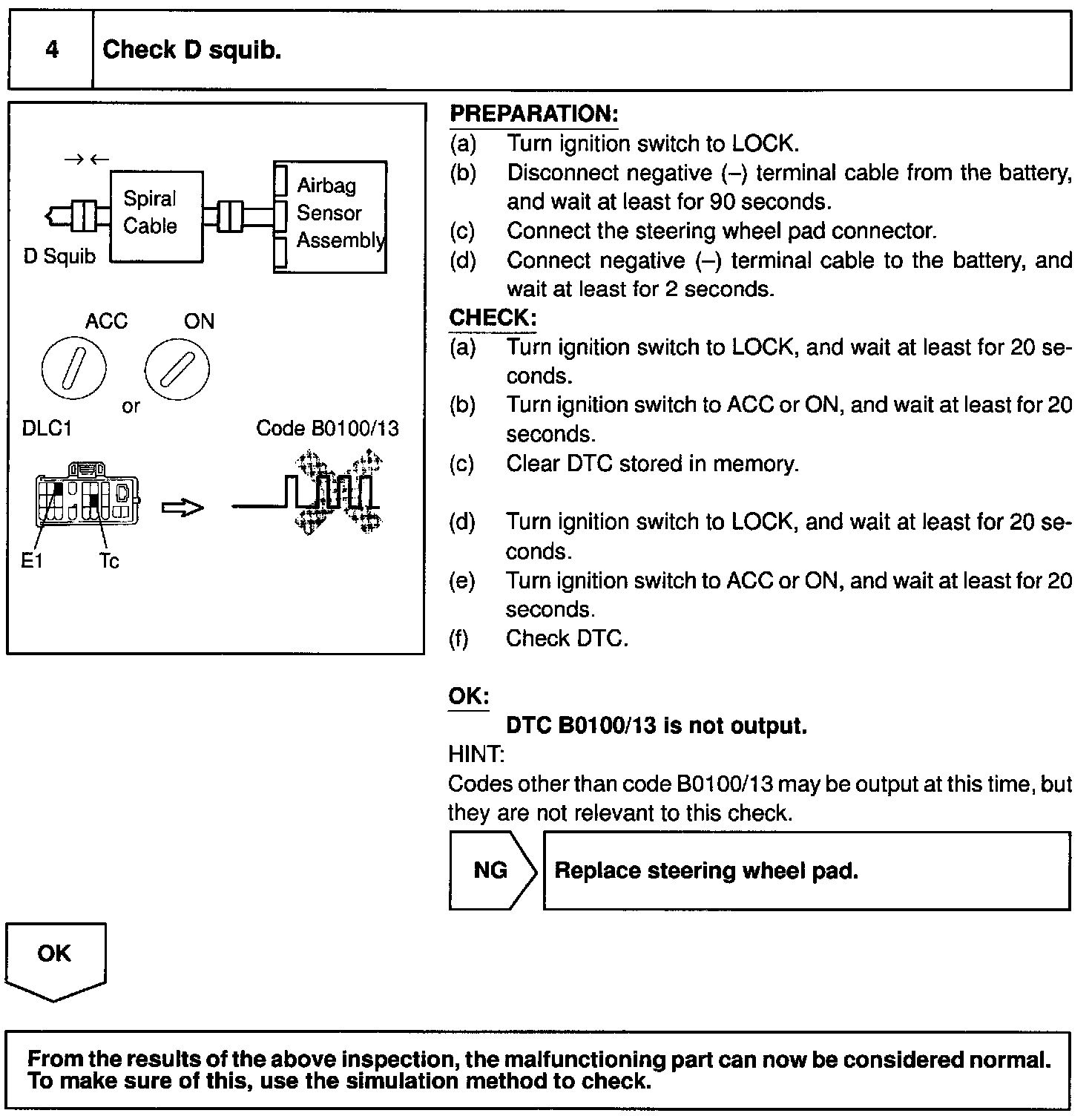

Step 4/Check D squib

B0100/13 (5 Of 6):

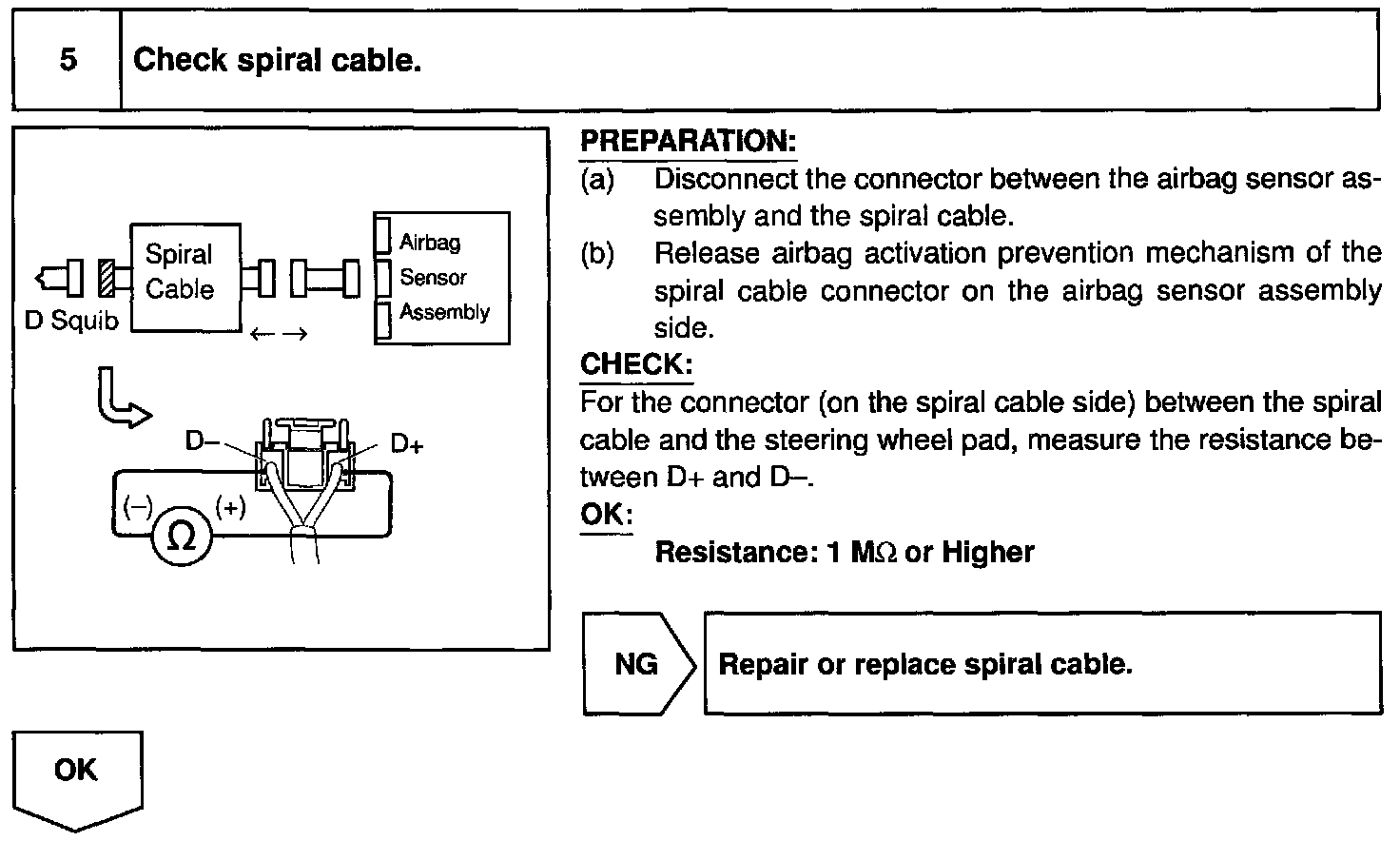

Step 5/Check Spiral Cable

B0100/13 (6 Of 6):

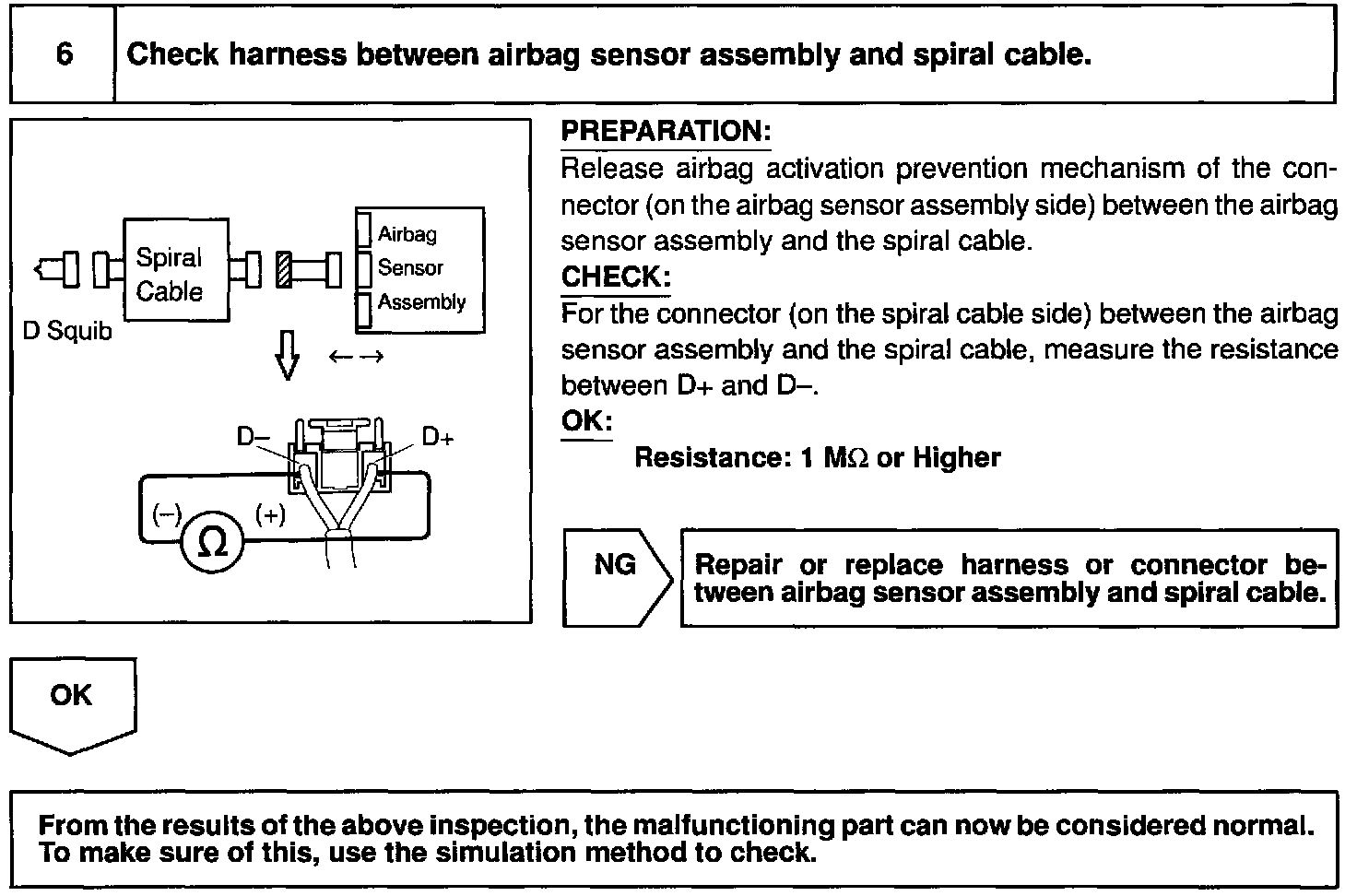

Step 6/Check harness between airbag sensor assembly and spiral cable
