A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Antilock Brake System)
>>
ABS Diagnosis System
ABS Diagnosis System
HINT

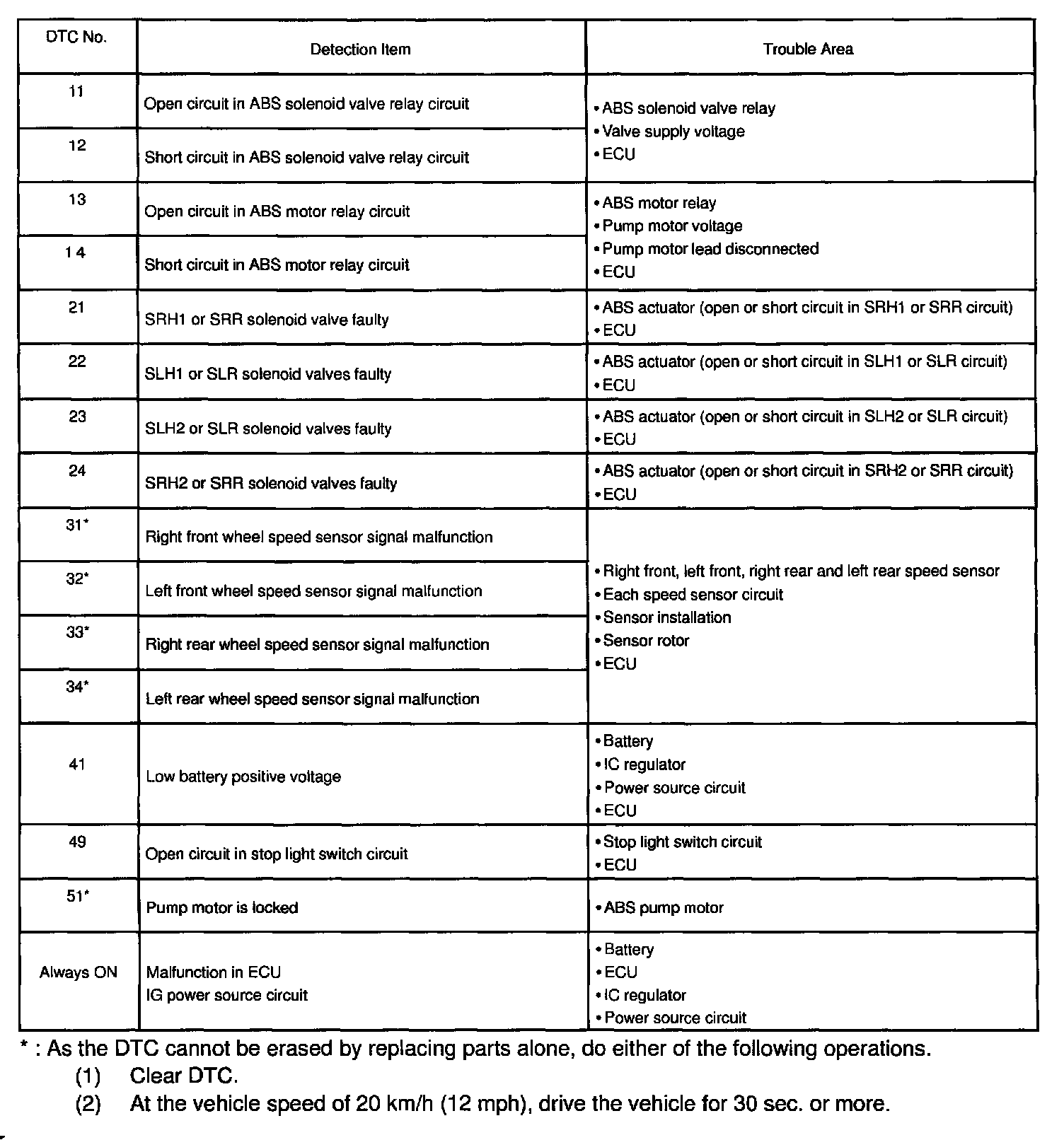

: Using SST 09843-18020, connect the terminals Tc and E1. If a malfunction code is displayed during the DTC check, check the circuit listed for that code.
