B0102

DTC B0102 Short In D Squib Circuit (to Ground)




CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

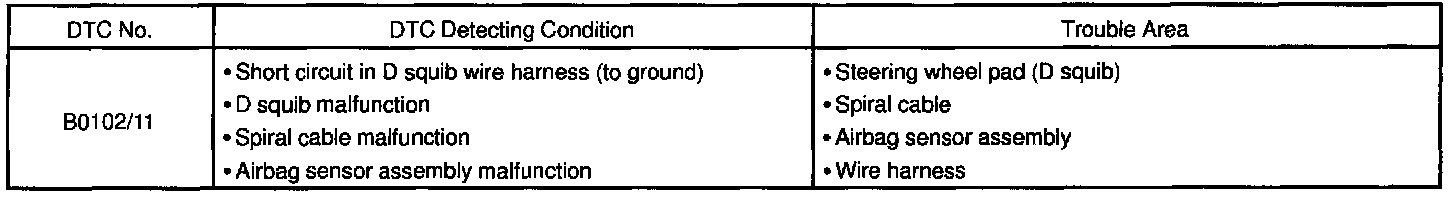

DTC B0102/11 is recorded when ground short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

B0102/11 (1 Of 6):

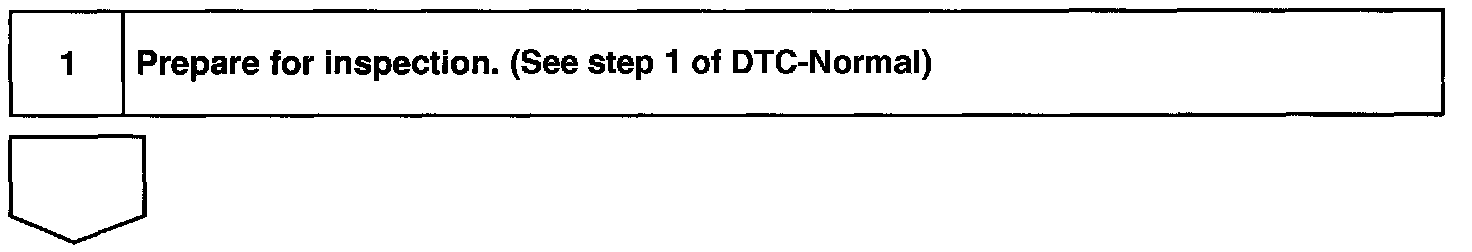

Step 1/Prepare for Inspection

B0102/11 (2 Of 6):

Step 2/Check D squib circuit

B0102/11 (3 Of 6):

Step 3/Check airbag sensor assembly

B0102/11 (4 Of 6):

Step 4/Check D squib

B0102/11 (5 Of 6):

Step 5/Check Spiral Cable

B0102/11 (6 Of 6):

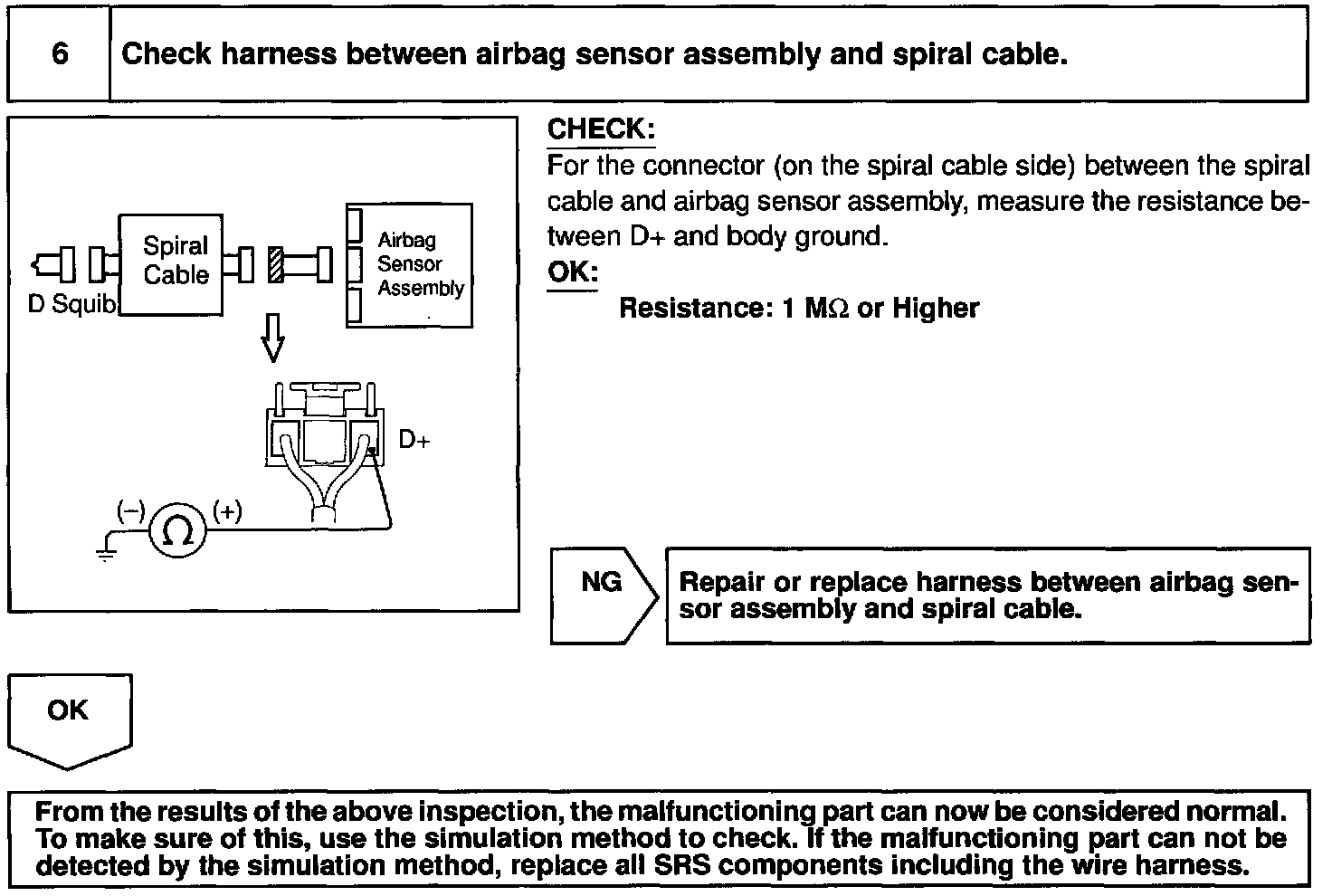

Step 6/Check harness between airbag sensor assembly and spiral cable
