Power Window Circuit Breaker: Testing and Inspection
INSPECT POWER WINDOW MOTOR CIRCUIT BREAKER OPERATIONDriver's Door:
a. Disconnect the connector from the master switch.
b. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1 on the wire harness side connector and raise the window to full closed position.
c. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds.
d. Reverse the polarity, check that the window begins to descend with in approximately 60 seconds.
If operation is not as specified, replace the motor.
INSPECT POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION
Front Passenger's Door:
a. Disconnect the connector from the power window switch

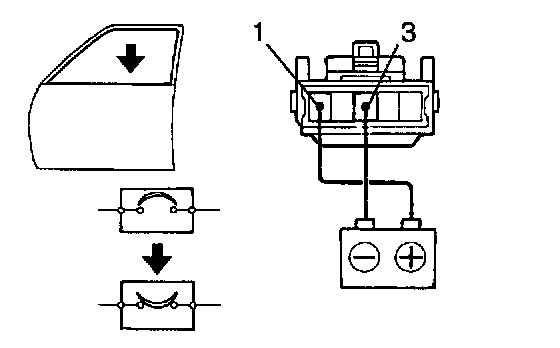

b. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1 on the wire harness side connector, and raise the window to full closed position.
c. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds.

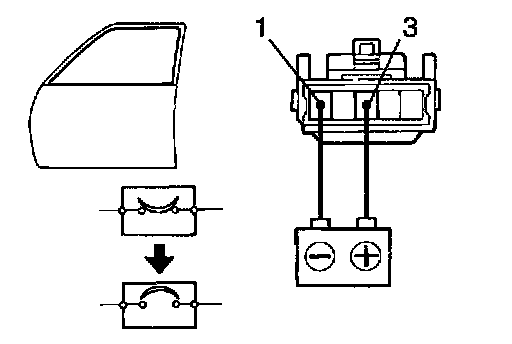

d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.
INSPECT POWER WINDOW MOTOR CIRCUIT BREAKER OPERATION
Rear Left or Right Side Door:
Refer to front passenger door procedure.
