Power Door Lock Relay: Testing and Inspection

INSPECT DOOR LOCK CONTROL RELAY (INTEGRATION RELAY) CIRCUIT

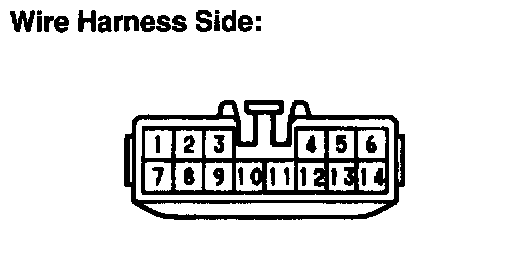

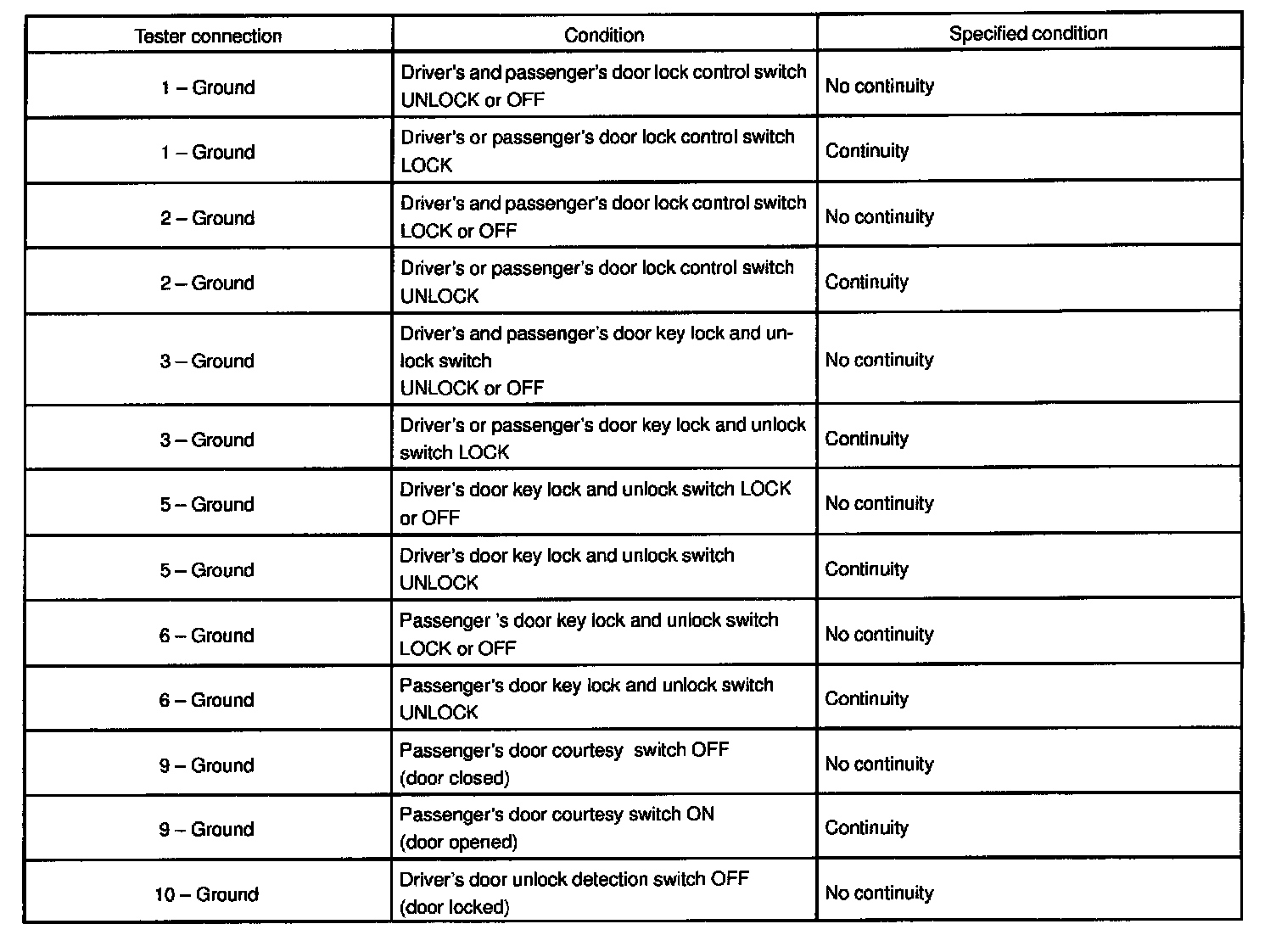

Disconnect the connector from the integration relay and inspect the connector on the wire harness side, as shown in the chart.
If circuit is as specified, inspect the door lock signal and key-off power window signal.

INSPECT DOOR LOCK CONTROL RELAY (INTEGRATION RELAY) OPERATION
Door Lock Signal:

HINT: When the relay circuit is as specified, inspect the door lock signal.




a. Connect the relay connector.

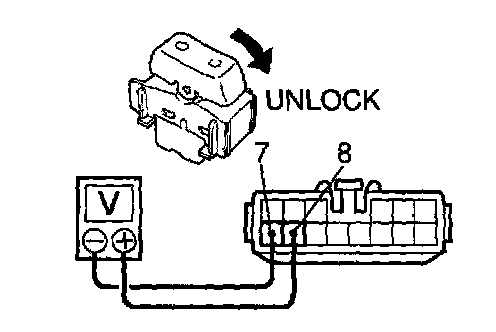

b. Connect the positive (+) lead from the voltmeter to terminal 8 and the negative (-) lead to terminal 7




c. Set the door lock control switch to UNLOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
d. Reverse the polarity of the voltmeter leads.
e. Set the door lock control switch to LOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
If operation is not as specified, replace the relay.
