Drive Belt: Service and Repair

COMPONENTS

REMOVAL




1. REMOVE DRIVE BELT
Turn the drive belt tensioner clockwise and remove the drive belt.

2. REMOVE GENERATOR

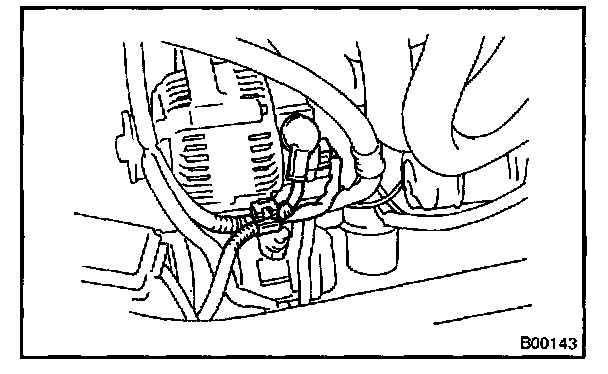

a. Disconnect the wire clamp from the wire clip on the rectifier end frame.
b. Remove the rubber cap and nut, and disconnect the generator wire.
c. Disconnect the generator connector.

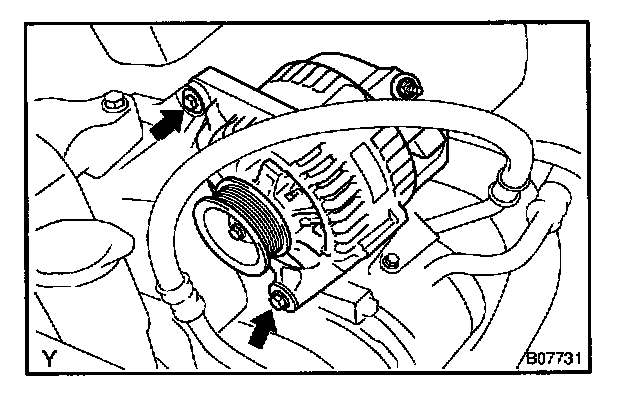

d. Remove the 2 bolts and generator.

INSTALLATION




1. INSTALL GENERATOR
a. Install the 2 bolts and generator.
Torque:
14 mm head 24.5 N.m (250 kgf.cm, 18 ft.lbf)
17 mm head 54 N.m (550 kgf.cm, 40 ft.lbf)
b. Connect the generator connector.
c. Connect the generator wire, and install the nut and rubber cap.
d. Connect the generator wire, and install the rubber cap and nut.
2. Turn the drive belt tensioner clockwise and install the drive belt.
