Compressor Clutch Relay: Service and Repair

REMOVAL

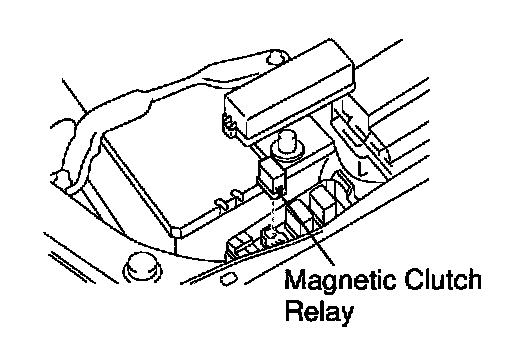

REMOVE MAGNETIC CLUTCH RELAY FROM RELAY BLOCK NO.5

INSTALLATION
Installation is in the reverse order of Removal.
