Compressor Clutch Relay: Testing and Inspection

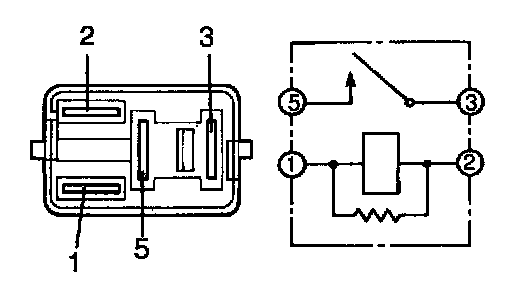

INSPECT MAGNETIC CLUTCH RELAY

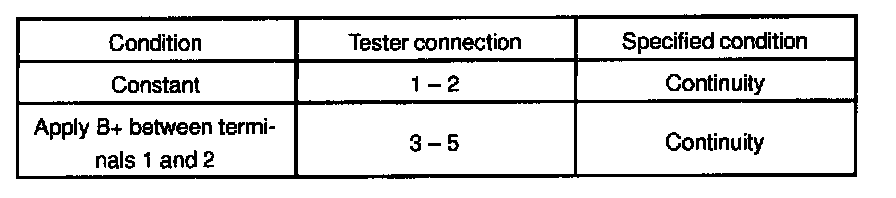

(Marking:A.C MG) CONTINUITY
If continuity is not as specified, replace the relay.
