General Torque Specifications

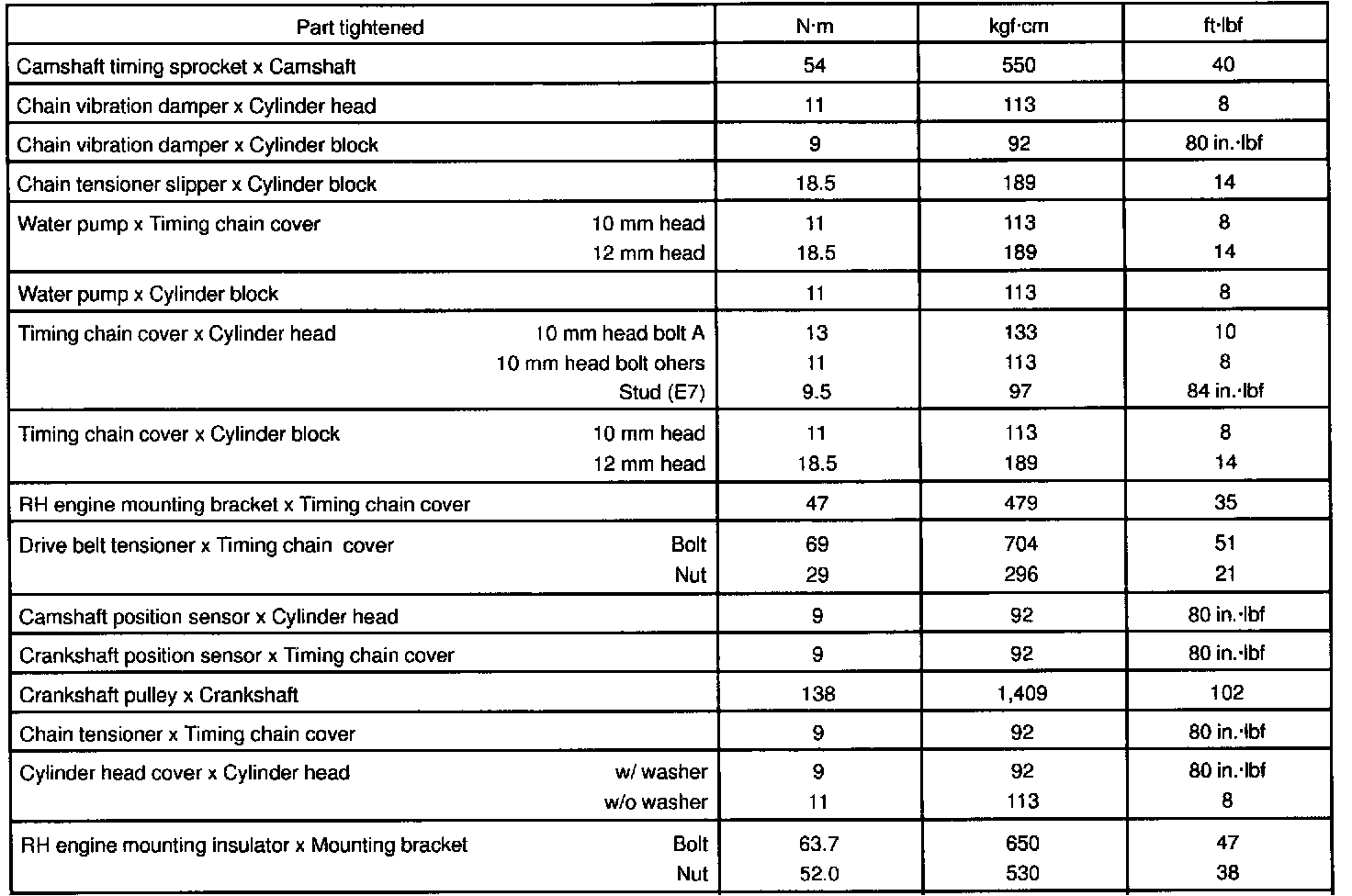

1ZZ-FE Engine Mechanical Torque:

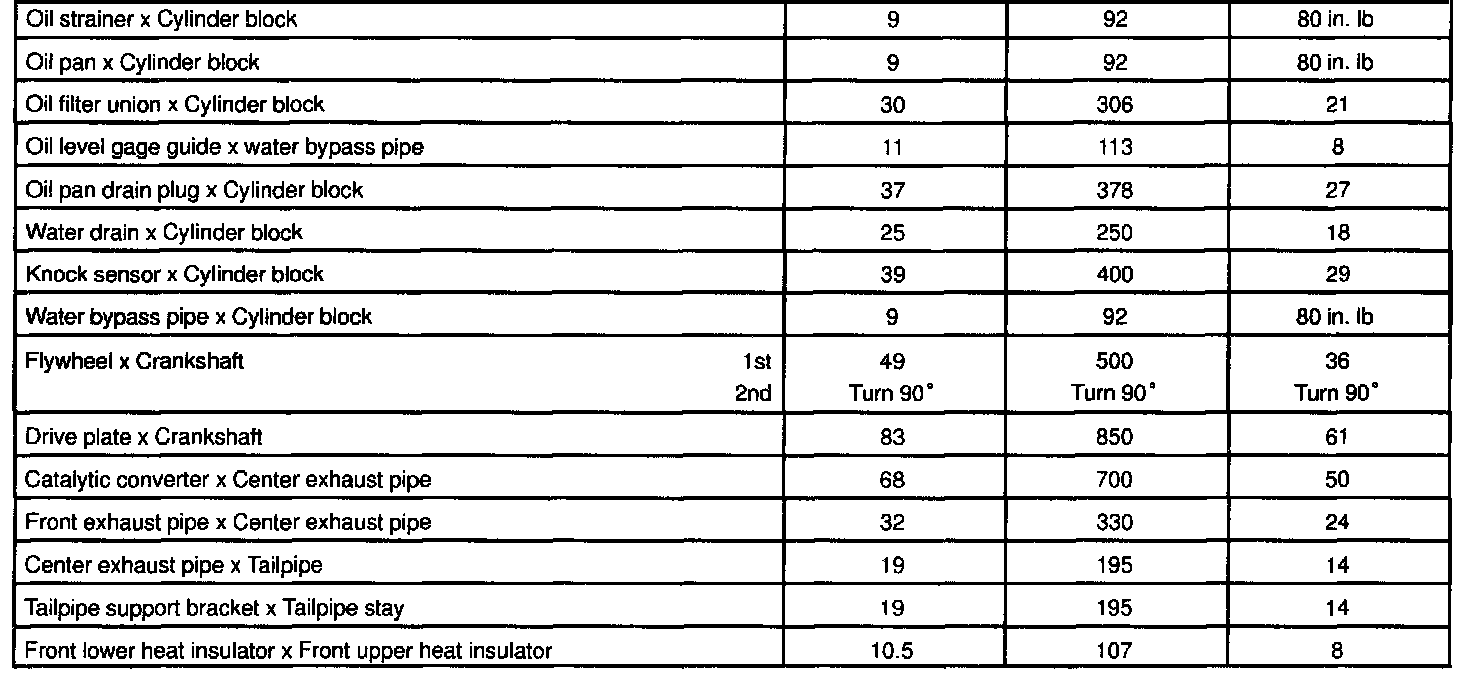

1ZZ-FE Engine Torque Cont.:

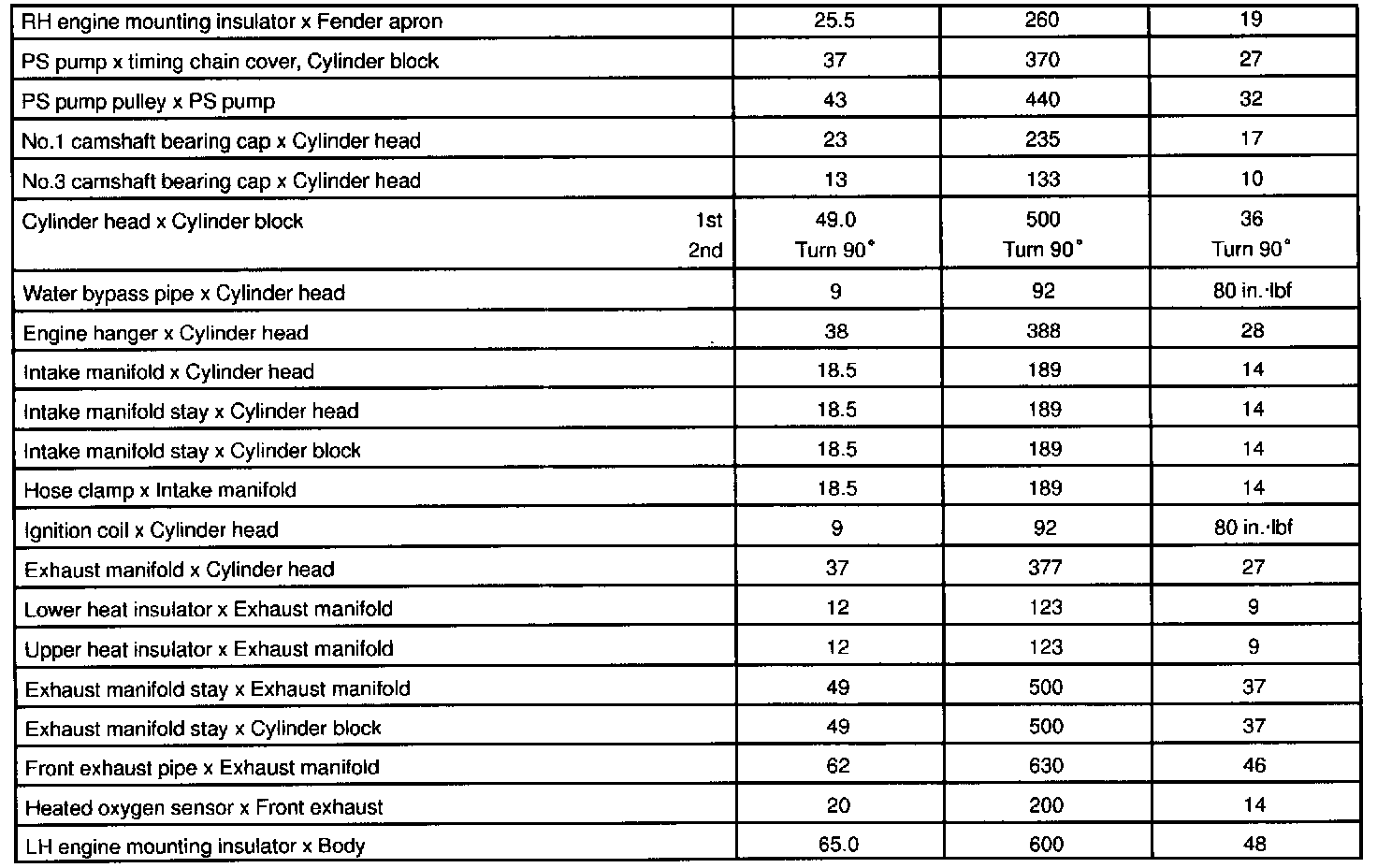

1ZZ-FE Engine Torque Cont.:

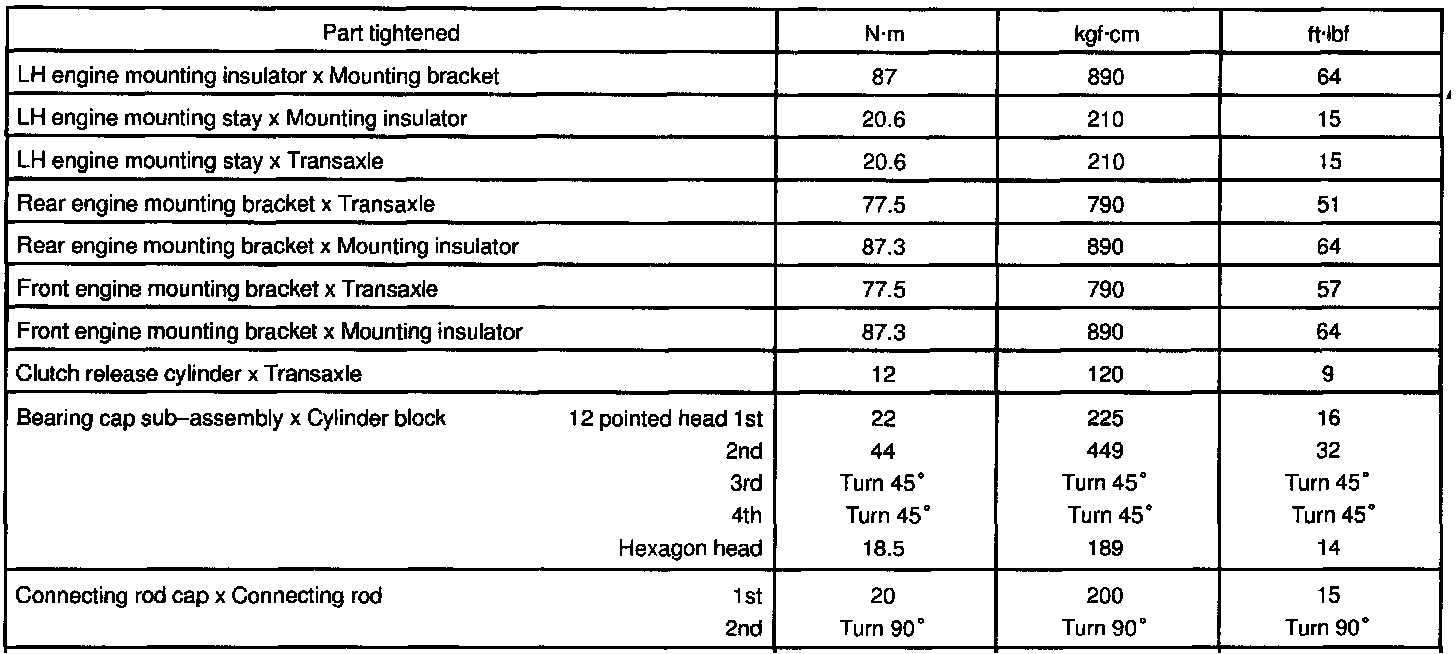

1ZZ-FE Engine Torque Cont.:

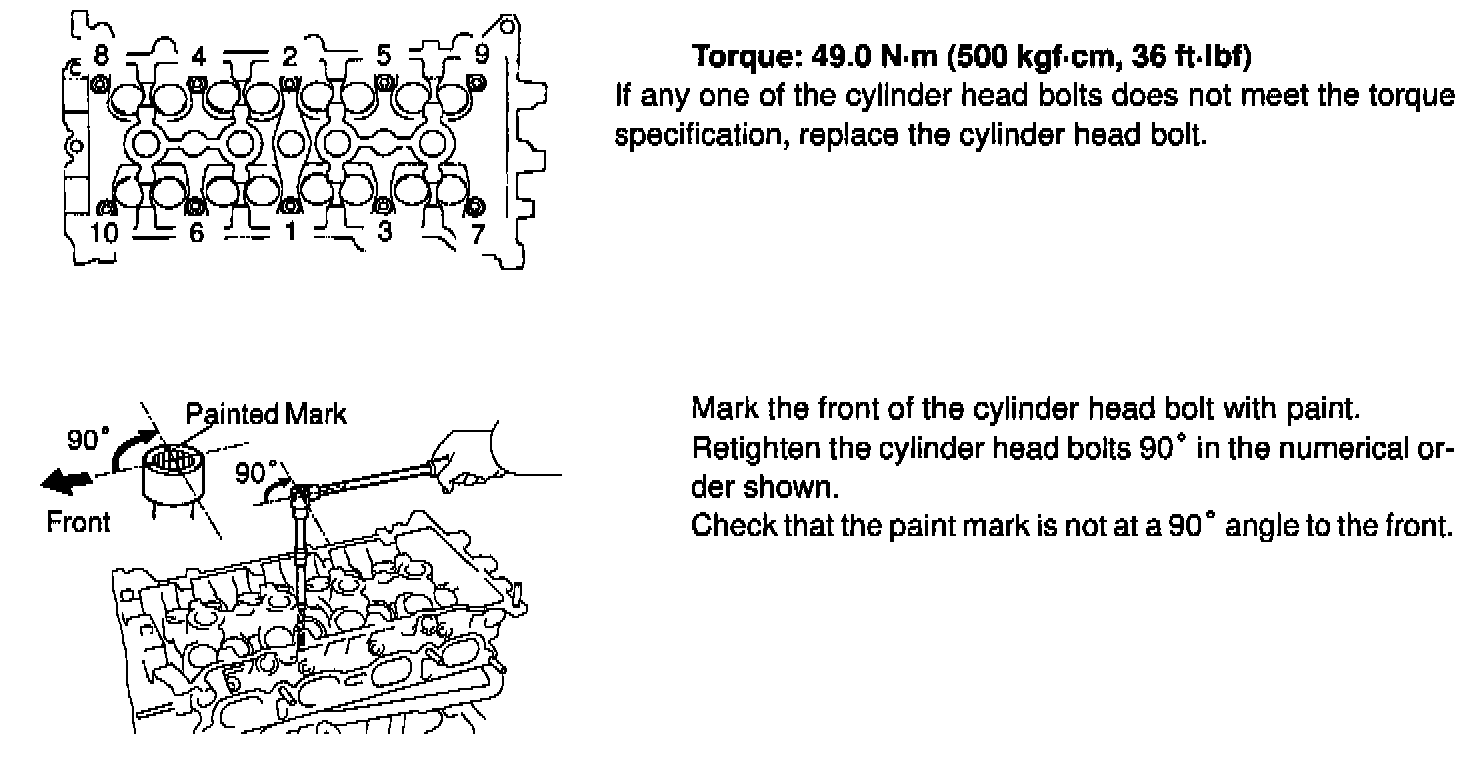

1ZZ-FE Cylinder Head Torque & Sequence:
