Cruise Control - Torque Revisions, Dealer Installed

ACCESSORIES
AX002-99

January 15, 1999

Title:
CRUISE CONTROL INSTALLATION TORQUE SPECIFICATION

Models:
'98 & 'Corolla

Introduction

The Installation Instructions of the Accessory DIO Corolla Cruise Control currently requires a torque of 19 ft-lbs (260 kgf-cm or 25 Nm) when installing the Clutch Switch and Brake Lamp Switch. This Torque Specification has been changed as shown below.

Affected Vehicles

^ 1998 and 1999 Corollas.

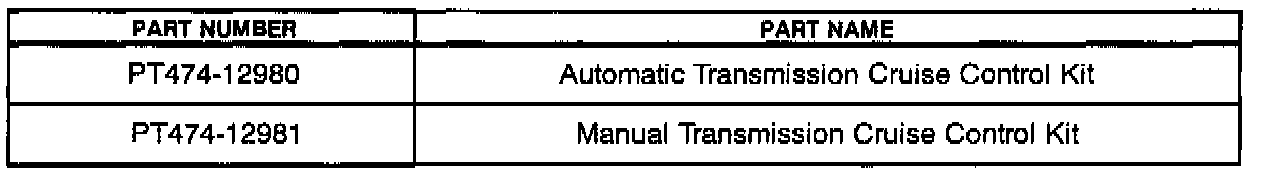

Parts Information





Required Tools & Material

Repair Procedure

1. In DIO Instructions page 12 of 20, step 18, the Switch Lock Nut for the Clutch Switch should be tightened to 11 ft-lbs. (153 kgf-cm or 15 Nm)

2. In DIO Instructions page 13 of 20, step 19, the Switch Lock Nut for the Brake Lamp Switch should be lightened to 11 ft-lbs. (153 kgf-cm or 15 Nm)

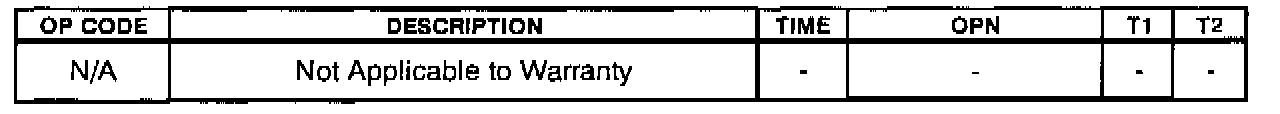

Warranty Information
