Radiator Cooling Fan Motor Relay: Service and Repair

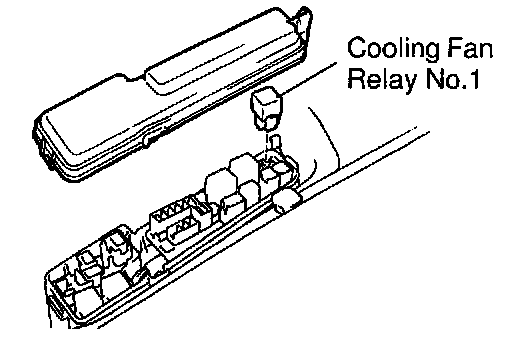

1. REMOVE COOLING FAN RELAY FROM JUNCTION AND RELAY BLOCK NO.2

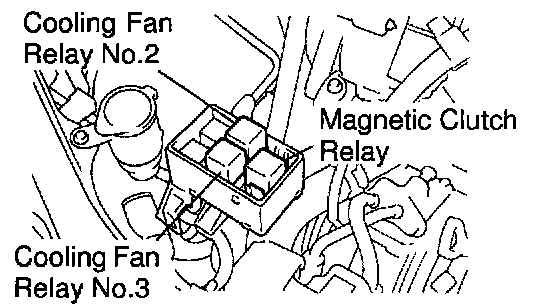

2. REMOVE COOLING FAN RELAY NO.2 FROM RELAY BLOCK NO.5
3. REMOVE COOLING FAN RELAY NO.3 FROM RELAY BLOCK NO.5
