Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

1. REMOVE THROTTLE BODY

2. REMOVE IAC VALVE
Remove the 4 screws IAC valve and gasket.

INSTALLATION

1. INSTALL IAC VALVE

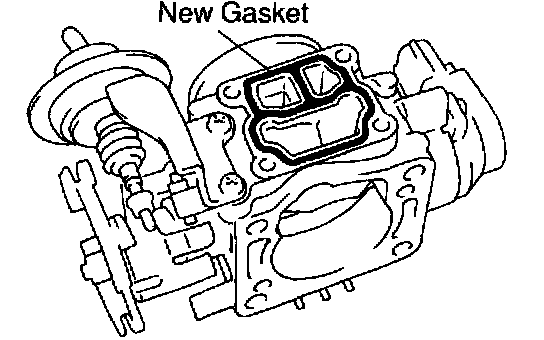

a. Place a new gasket on the throttle body.
b. Install the IAC valve with the 4 screws.

2. INSTALL THROTTLE BODY
