Removal and Installation

COMPONENTS

REMOVAL

1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

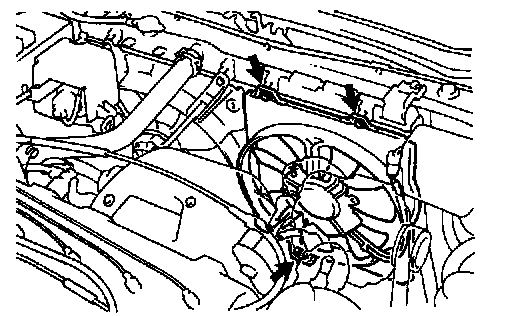

2. REMOVE CONDENSER FAN
a. Disconnect the connector.
b. Remove the 3 bolts and condenser fan.
Torque: 5.0 Nm (55 kgf.cm, 48 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
