Disassembly and Reassembly

DISASSEMBLY

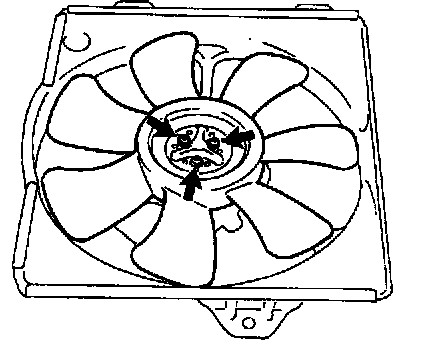

1. REMOVE FAN
Remove the 3 screws and fan.

2. REMOVE FAN MOTOR COVER
Remove the 3 screws and motor cover.




3. REMOVE FAN MOTOR

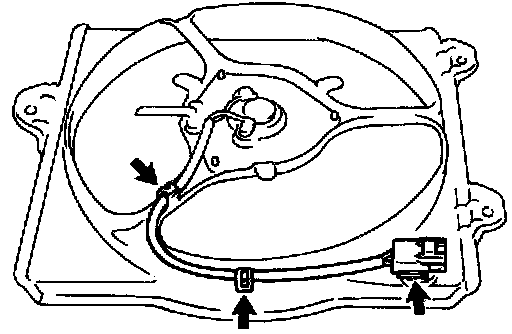

a. Disconnect the wire harness and connector from the fan shroud.
b. Remove the 3 screws and motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
