Removal and Installation

COMPONENTS

REMOVAL

1. REMOVE COOLING UNIT




2. REMOVE BLOWER UNIT
a. Disconnect the connector from the blower motor and air inlet servomotor.
b. Remove wire harness clamp.

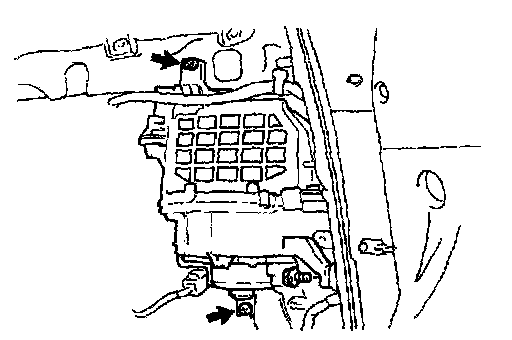

c. Remove the 2 nuts, a bolt and the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
