Blower Motor Resistor: Service and Repair

REMOVAL

1. REMOVE LOWER FINISH PANEL




2. REMOVE BLOWER RESISTOR
a. Disconnect the connector.

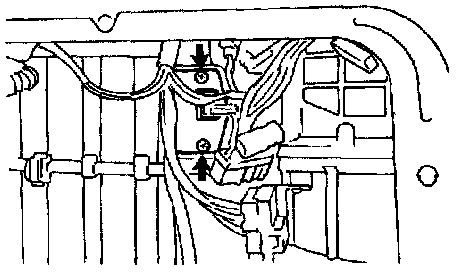

b. Remove the 2 screws and the blower resistor.

INSTALLATION

1. INSTALL BLOWER RESISTOR
a. Install the blower resistor and 2 screws.
b. Connect the connector.

2. INSTALL LOWER FINISH PANEL
