Assembly

REASSEMBLY

HINT:
^ Thoroughly clean all parts to be assembled.
^ Before installing the parts, apply new engine oil to all sliding and rotating surfaces.
^ Replace all gaskets and oil seals with new ones.

1. INSTALL VALVES

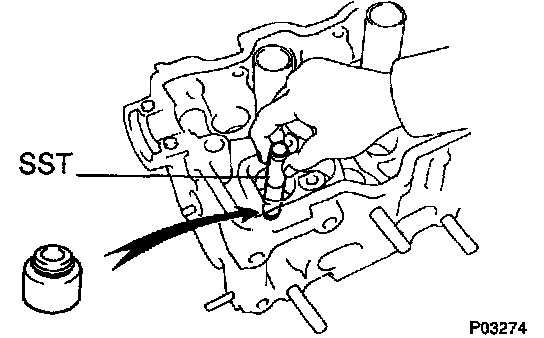

a. Using Special Service Tool (SST), push in a new oil seal.
SST 09201-41020

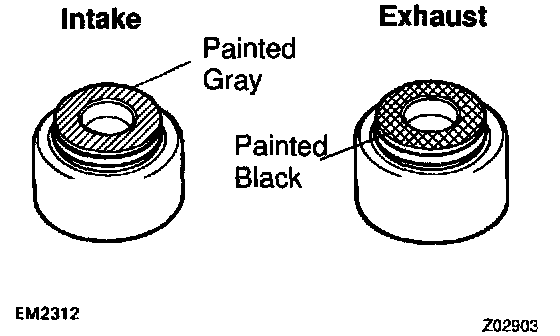

HINT: The intake valve oil seal is gray and the exhaust valve oil seal is black.

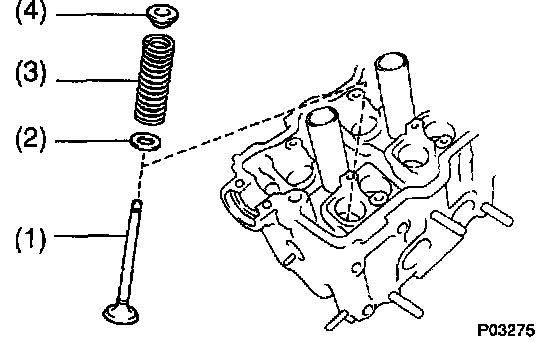

b. Install these parts:
1) Valve
2) Spring seat
3) Valve spring
4) Spring retainer





c. Using SST, compress the valve spring and place the 2 keepers around the valve stem.
SST 09202-70020 (09202-00010)

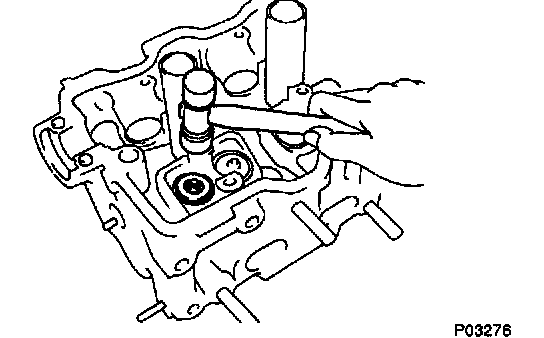

d. Using a plastic-faced hammer, lightly tap the valve stem tip to assure a proper fit.
2. INSTALL VALVE LIFTERS AND SHIMS
a. Install the valve lifter and shim.
b. Check that the valve lifter rotates smoothly by hand.
