Temperature Sensor (Gauge): Testing and Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENDER GAUGE RESISTANCE

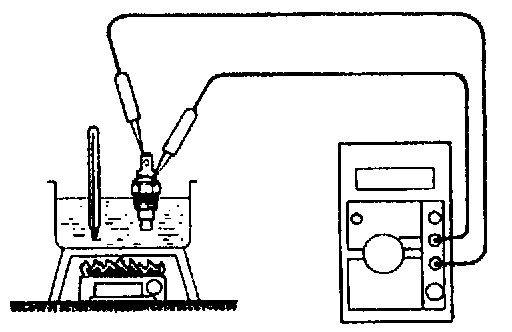

Measure the resistance between terminal and gauge body.

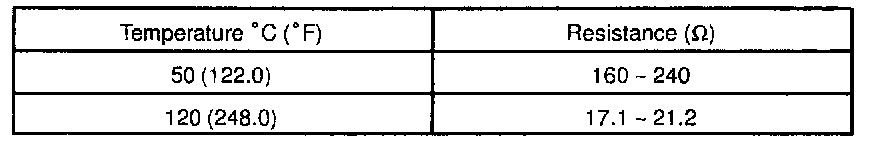

If resistance value is not as specified, replace the engine coolant temperature sender gauge.
