Celica ST Liftback L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Cruise Control Servo
>>

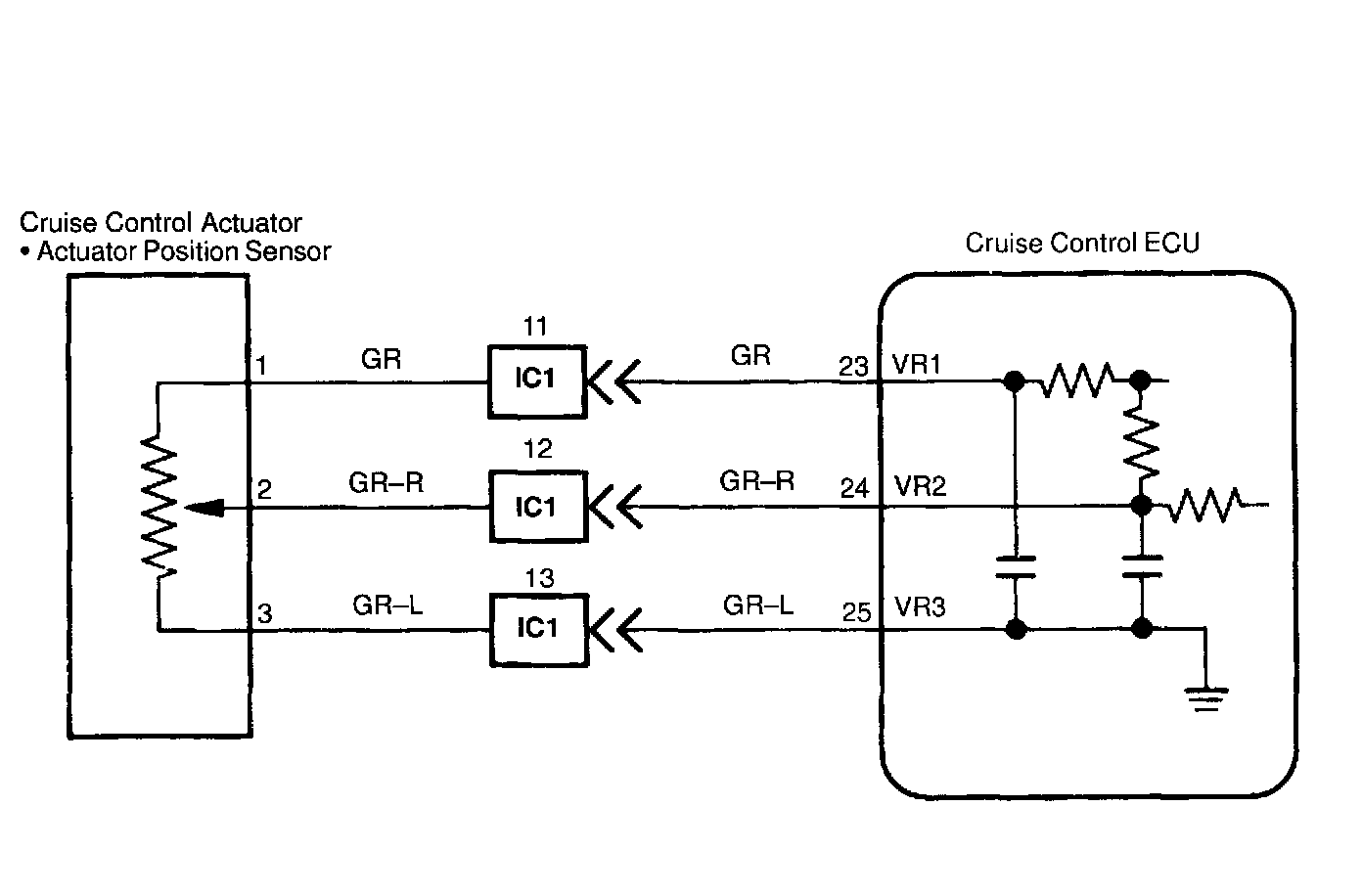

Actuator Position Sensor Circuit
Actuator Position Sensor Circuit
