Removal and Installation

REMOVAL
1. REMOVE FRONT WHEEL

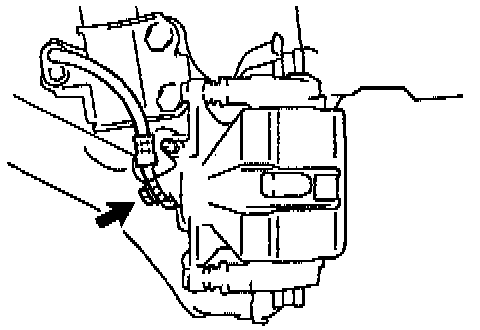

Disconnect Flexible Hose From Caliper:

2. DISCONNECT FLEXIBLE HOSE
a. Remove the union bolt and gasket from the caliper, then disconnect the flexible hose from the caliper.
Torque: 30 Nm (310 kgf-cm, 22 ft. lbs.)

HINT: At the time of installation, install the flexible hose lock securely in the lock hole in the caliper.

b. Use a container to catch the brake fluid as it drains out.
3. REMOVE CALIPER
a. Hold the sliding pin and loosen the 2 installation bolts.
Torque: 34 Nm (350 kgf-cm, 25 ft. lbs.)
b. Remove the 2 installation bolts.
c. Remove the caliper from the torque plate.
4. REMOVE 2 ANTI-SQUEAL SPRINGS
5. REMOVE 2 PADS WITH ANTI-SQUEAL SHIMS
6. REMOVE 4 PAD SUPPORT PLATES

INSTALLATION
Installation is in the reverse order of removal.
1. AFTER INSTALLATION, FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM
2. CHECK FOR LEAKS
