Power Mirror Switch: Testing and Inspection

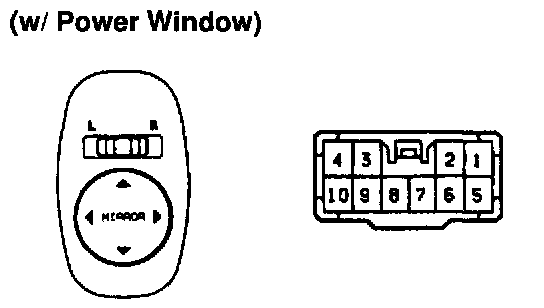

w/ Power Window:




INSPECT MIRROR SWITCH CONTINUITY

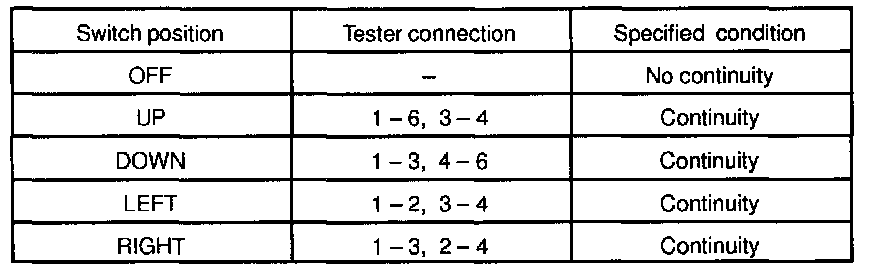

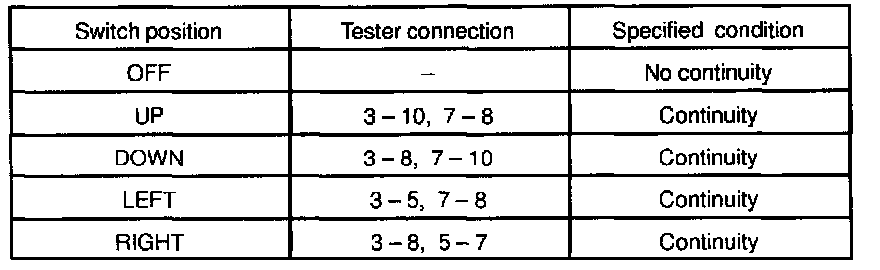

Left Side

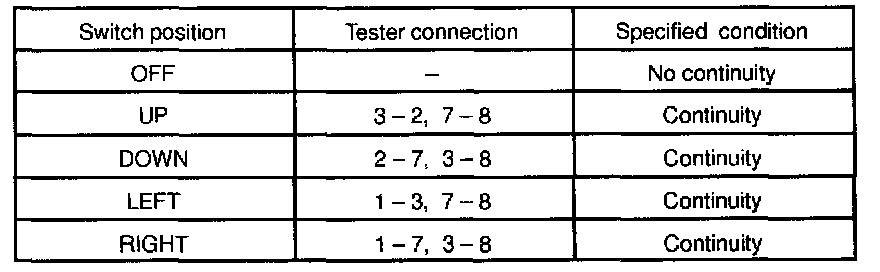

Right Side
If continuity is not as specified, replace the switch.

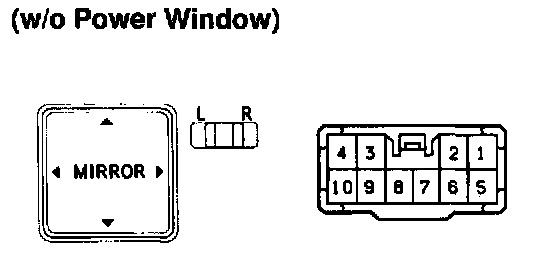

w/o Power Window:




INSPECT MIRROR SWITCH CONTINUITY

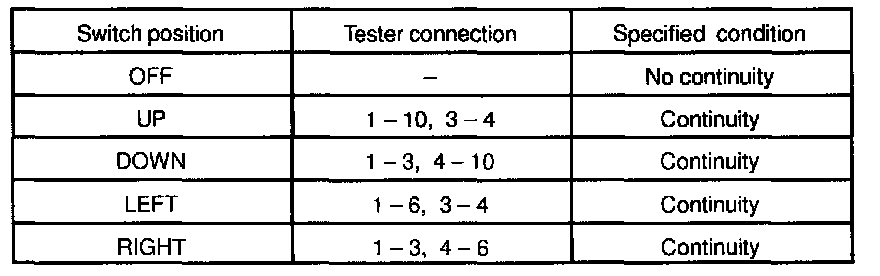

Left Side




Right Side
If continuity is not as specified, replace the switch.
