Power Mirror Motor: Testing and Inspection

INSPECT MIRROR MOTOR OPERATION

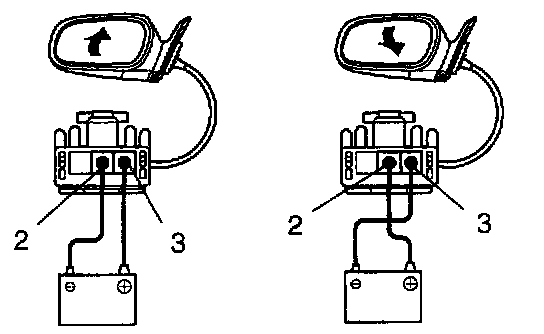

a. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 2, check that the mirror turns upward.
b. Reverse the polarity, check that the mirror turns downward.

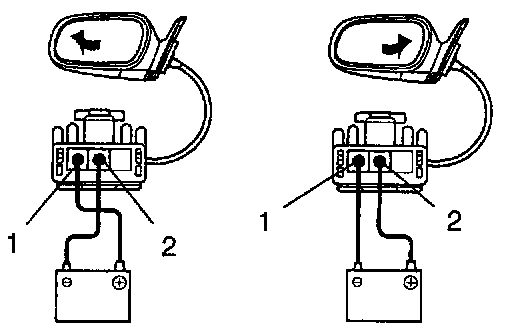

c. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror turns to left side.
d. Reverse the polarity, check that the mirror turns to right side.
If operation is not as specified, replace the mirror.
