Power Door Lock Switch: Testing and Inspection

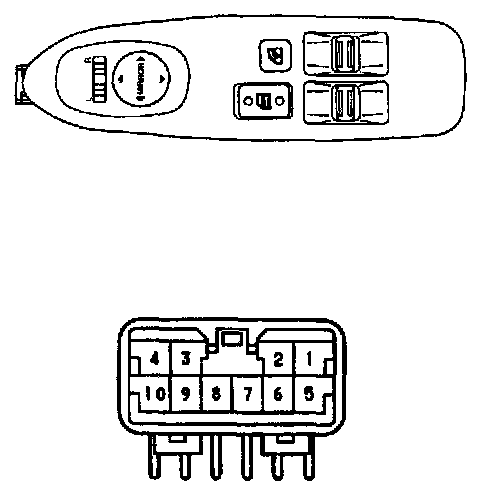

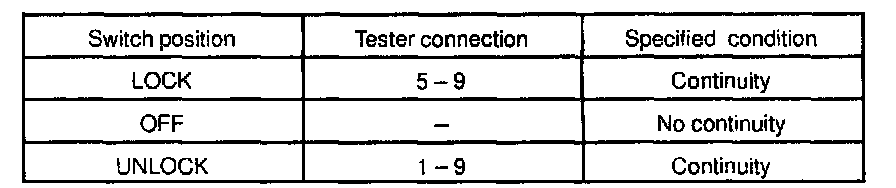

INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

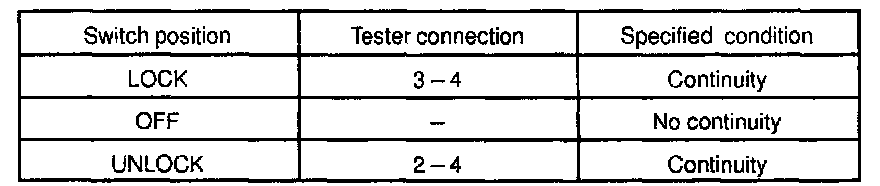

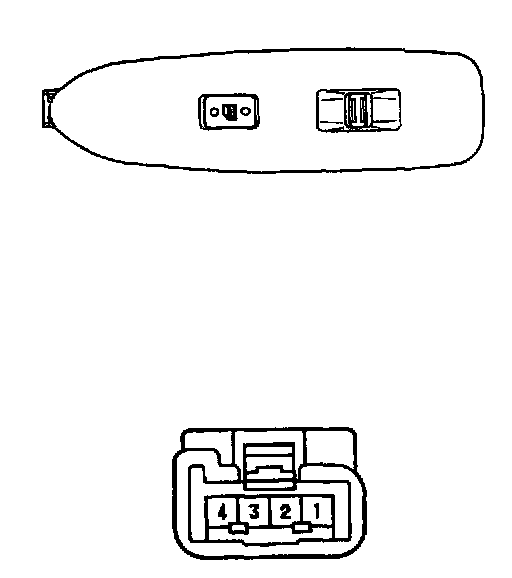

INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

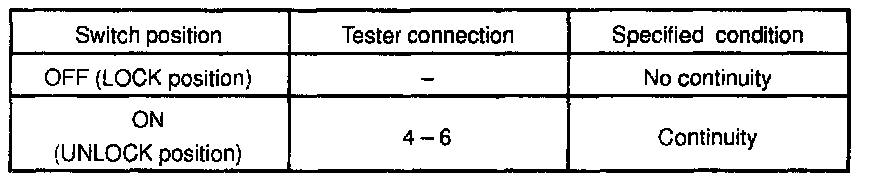

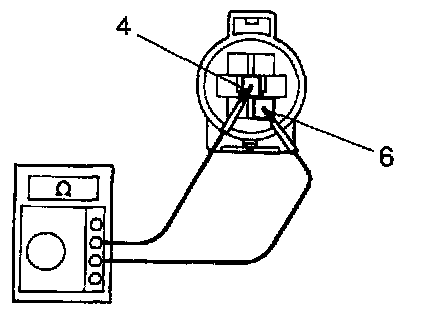

INSPECT DOOR UNLOCK DETECTION SWITCH OPERATION
If continuity is not as specified, replace the door lock assembly.
