Power Window Switch: Testing and Inspection

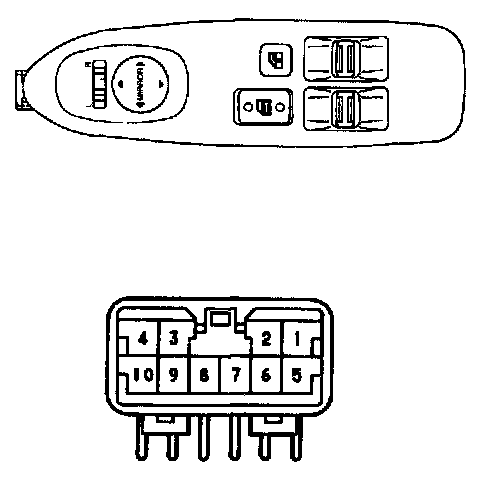

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

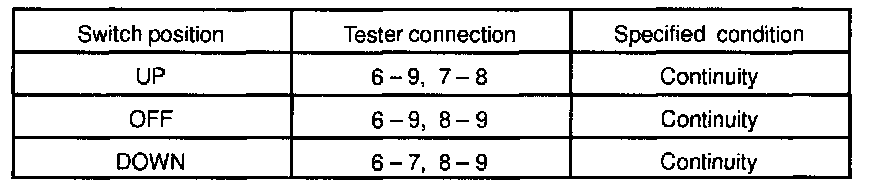

Driver's Switch

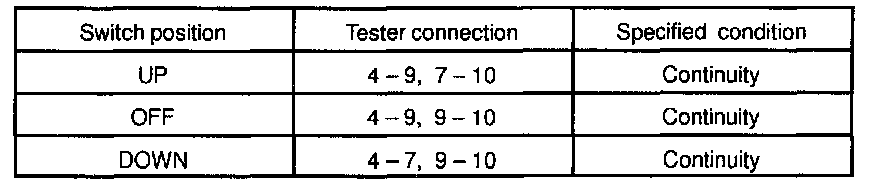

Passenger's Switch (Window unlock)

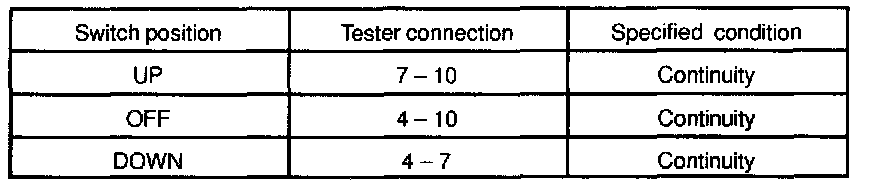

Passenger's Switch (Window lock)
If continuity is not as specified, replace the switch.







INSPECT POWER WINDOW SWITCH CONTINUITY

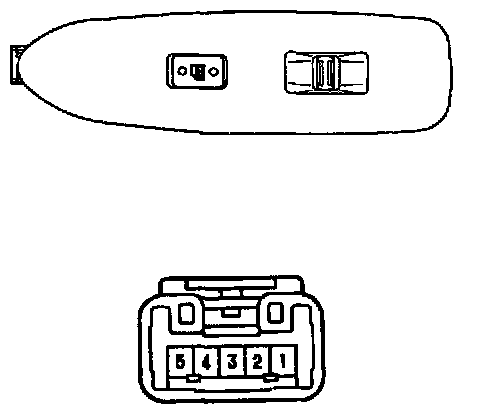

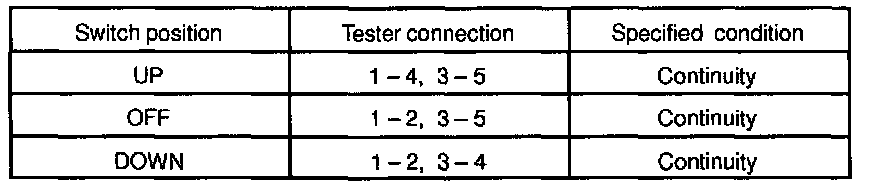

Passenger's Switch:
If continuity is not as specified, replace the switch.
