Shift Interlock: Testing and Inspection

INSPECTION








1. INSPECT SHIFT LOCK CONTROL ECU

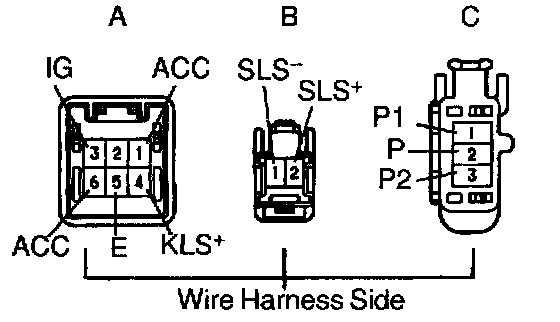

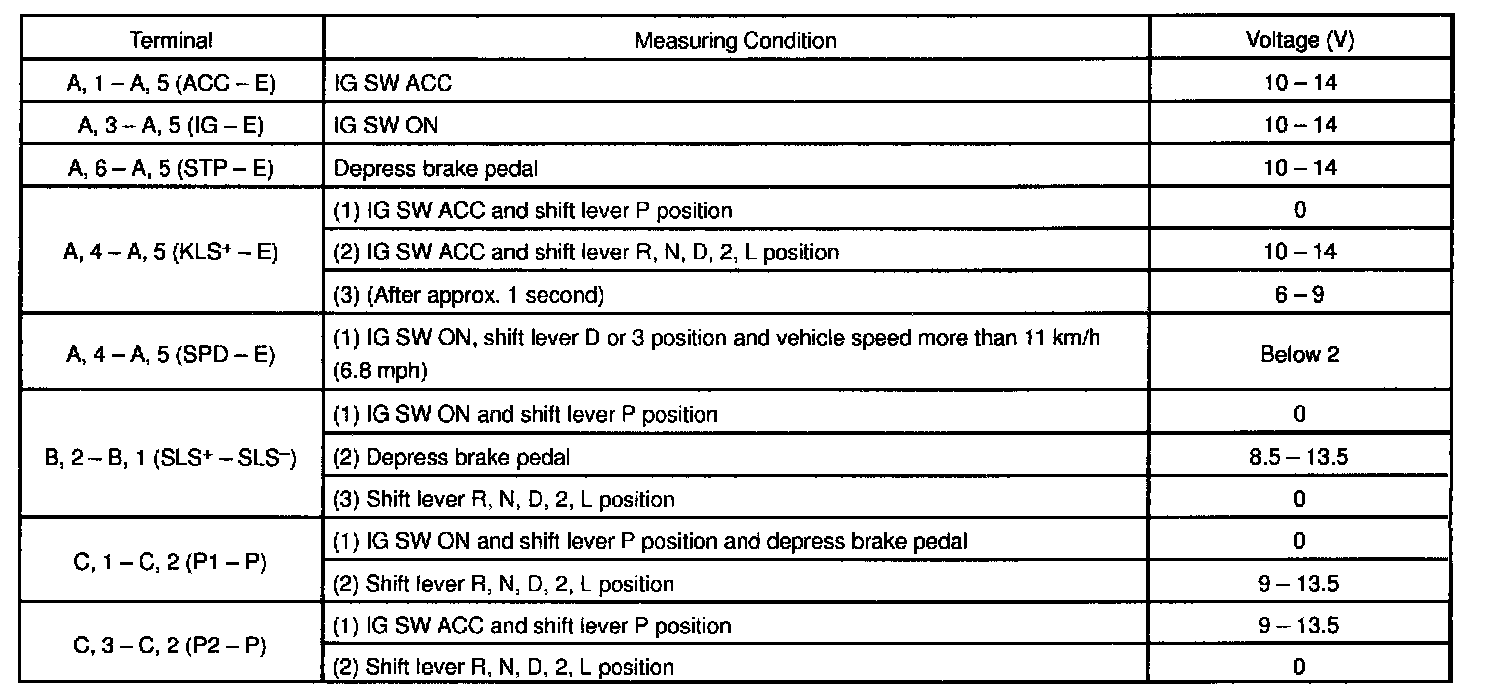

Using a voltmeter, measure the voltage at each terminals.

HINT: Do not disconnect the ECU connector.

2. INSPECT KEY INTERLOCK SOLENOID
a. Disconnect the solenoid connector.

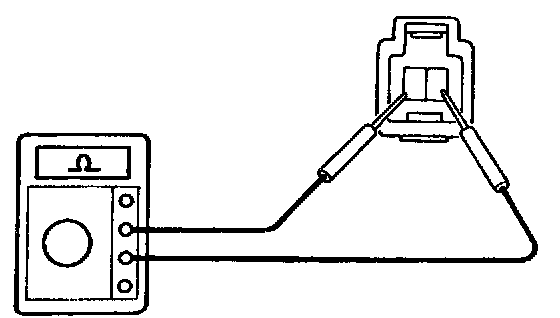

b. Using an ohmmeter, measure the resistance between the terminals.
Standard resistance: 21-27 Ohms
If the resistance value is not as specified, replace the solenoid.

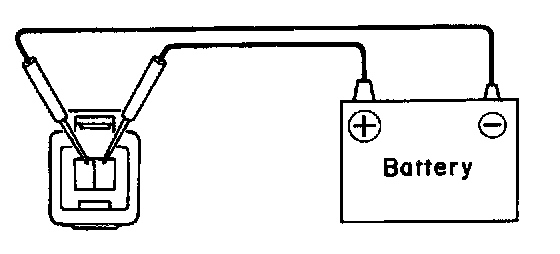

c. Supply the battery positive voltage between terminals.
Check that the solenoid operation sound is heard.
If the operation is not as specified, replace the solenoid.
3. INSPECT SHIFT LOCK CONTROL SWITCH

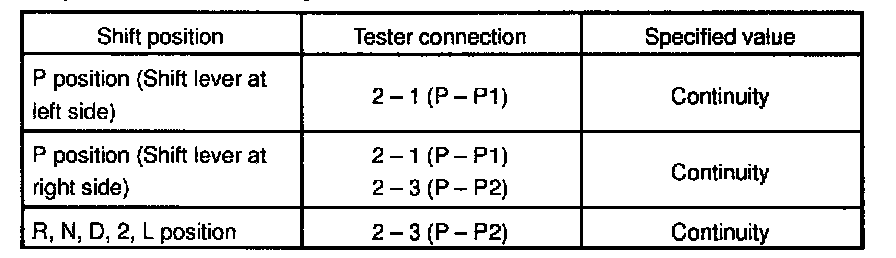

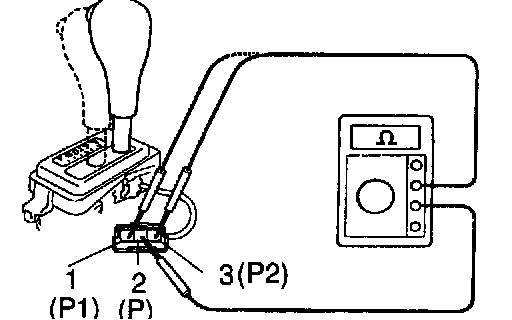

Inspect that continuity exists between each terminal.








If the continuity is not as specified, replace the switch.
