Component Tests and General Diagnostics

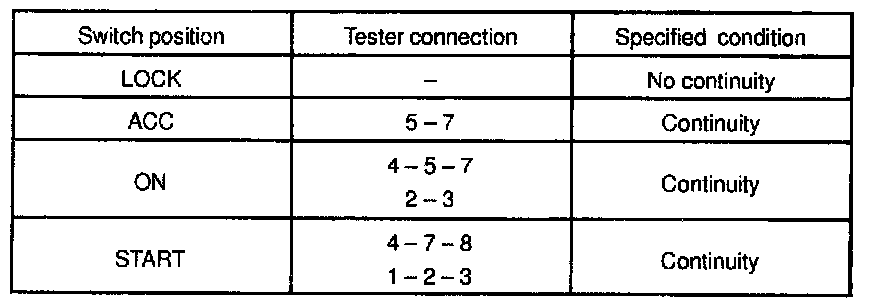

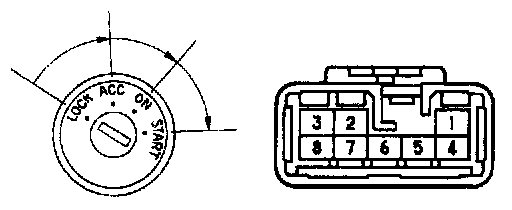

INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

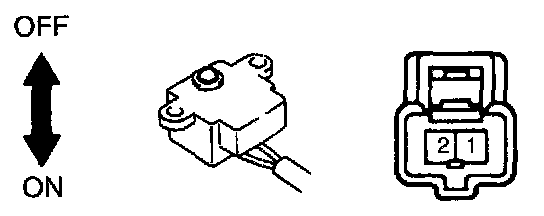

INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

INSPECT KEY UNLOCK WARNING OPERATION:

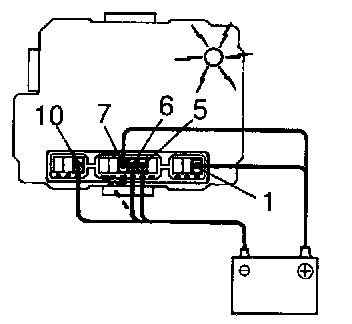

INSPECT INTEGRATION RELAY




a. Connect the positive (+) lead from the battery to terminals 1 and 7, the negative lead to terminals 5 and 10.
b. Check that the buzzer sounds when the negative (-) lead from the battery is connected to terminal 6.
If operation is not as specified, replace the relay.
