Removal and Installation

COMPONENTS

REMOVAL

REMOVE GENERATOR

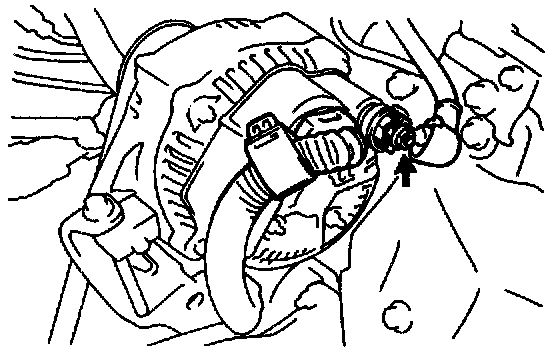

a Disconnect the wire from the clamp on the rear end cover.
b Disconnect the generator connector.
c Remove the rubber cap and nut, and disconnect the generator Wire

NOTE: Perform on-vehicle inspection.

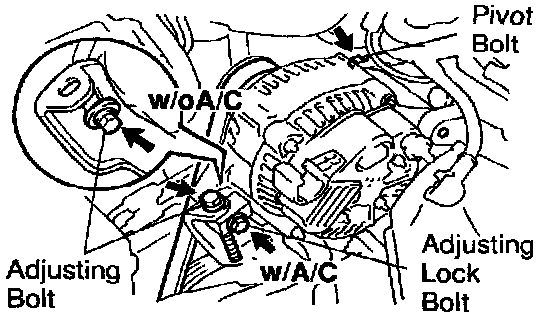

d Loosen the adjusting lock bolt (w/ A/C), adjusting bolt and pivot bolt.
Torque:
Pivot bolt 54 Nm (530 kgf.cm, 40 ft.lbf)
Adjusting lock bolt (w/ A/C) or Adjusting bolt (w/o A/C) 19 Nm (185 kgf.cm, 14 ft.lbf)

e Remove the drive belt

HINT: Adjust the drive belt.

f Remove the adjusting lock bolt (w/ A/C) or adjusting bolt (w/o A/C) and pivot bolt.

HINT: Do not tighten the bolts yet.

g Remove the generator.

INSTALLATION
Installation is in the reverse order of removal.
