Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR RESISTANCE

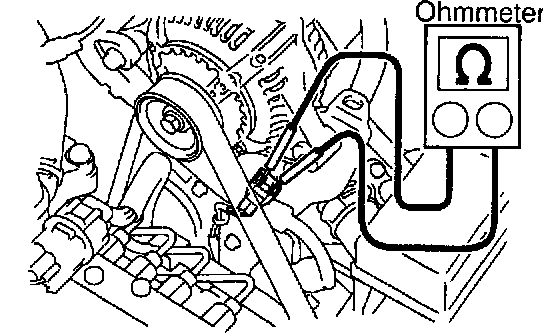

Using an ohmmeter, measure the resistance between terminals.

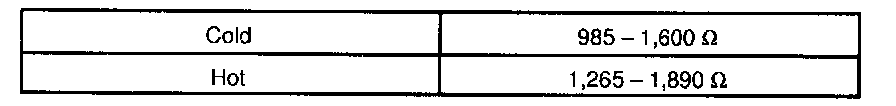

Resistance:
If the resistance is not as specified, replace the crankshaft position sensor.

RECONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
