Compressor Clutch Relay: Testing and Inspection

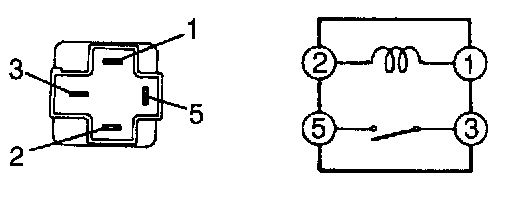

INSPECT MAGNETIC CLUTCH RELAY CONTINUITY

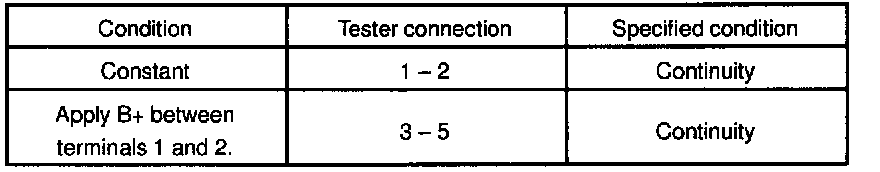

If continuity is not as specified, replace the relay.
