Celica GT Liftback L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering Column
>>
With Tilt Steering Column
With Tilt Steering Column

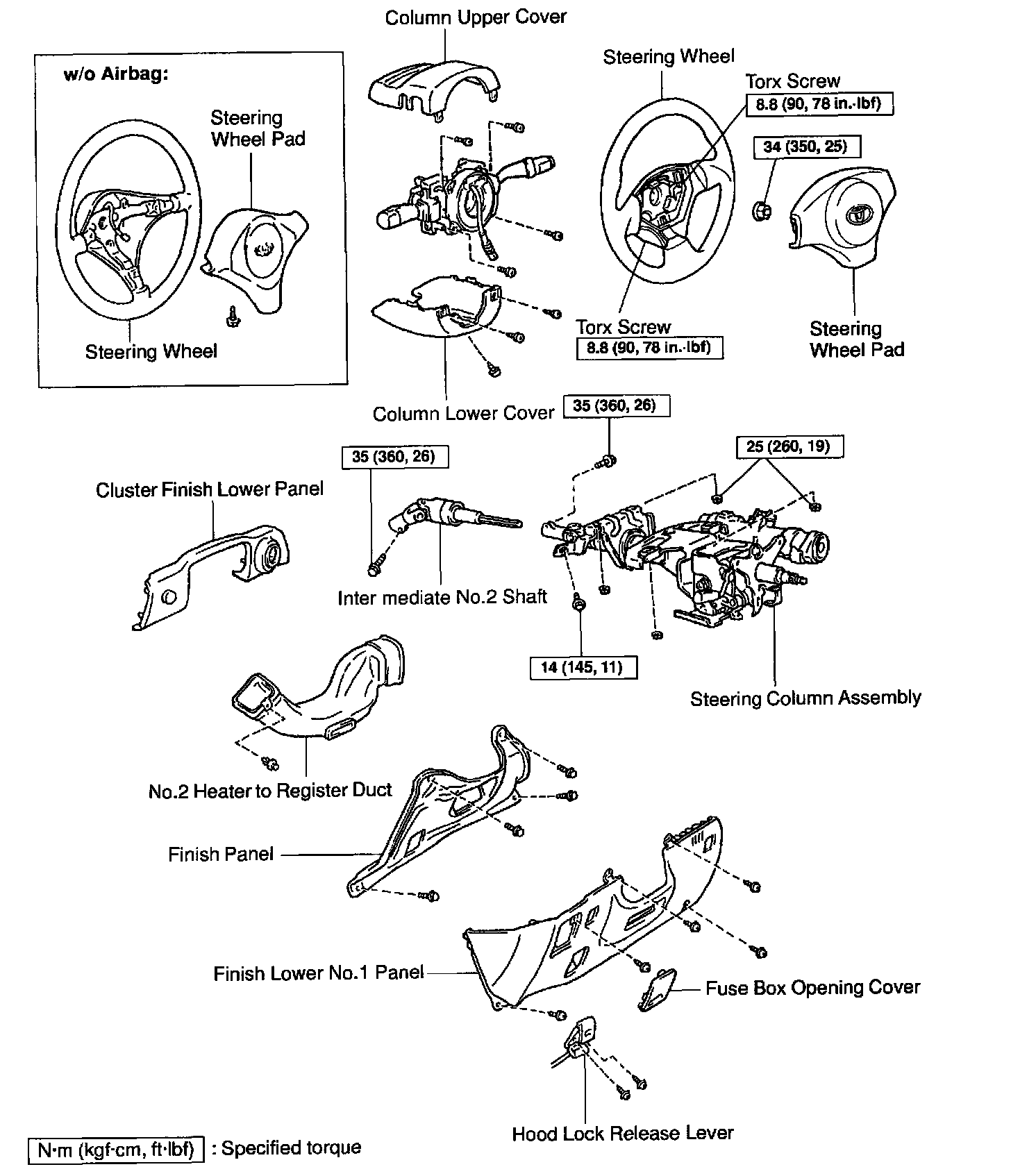

STEERING COLUMN ASSEMBLY

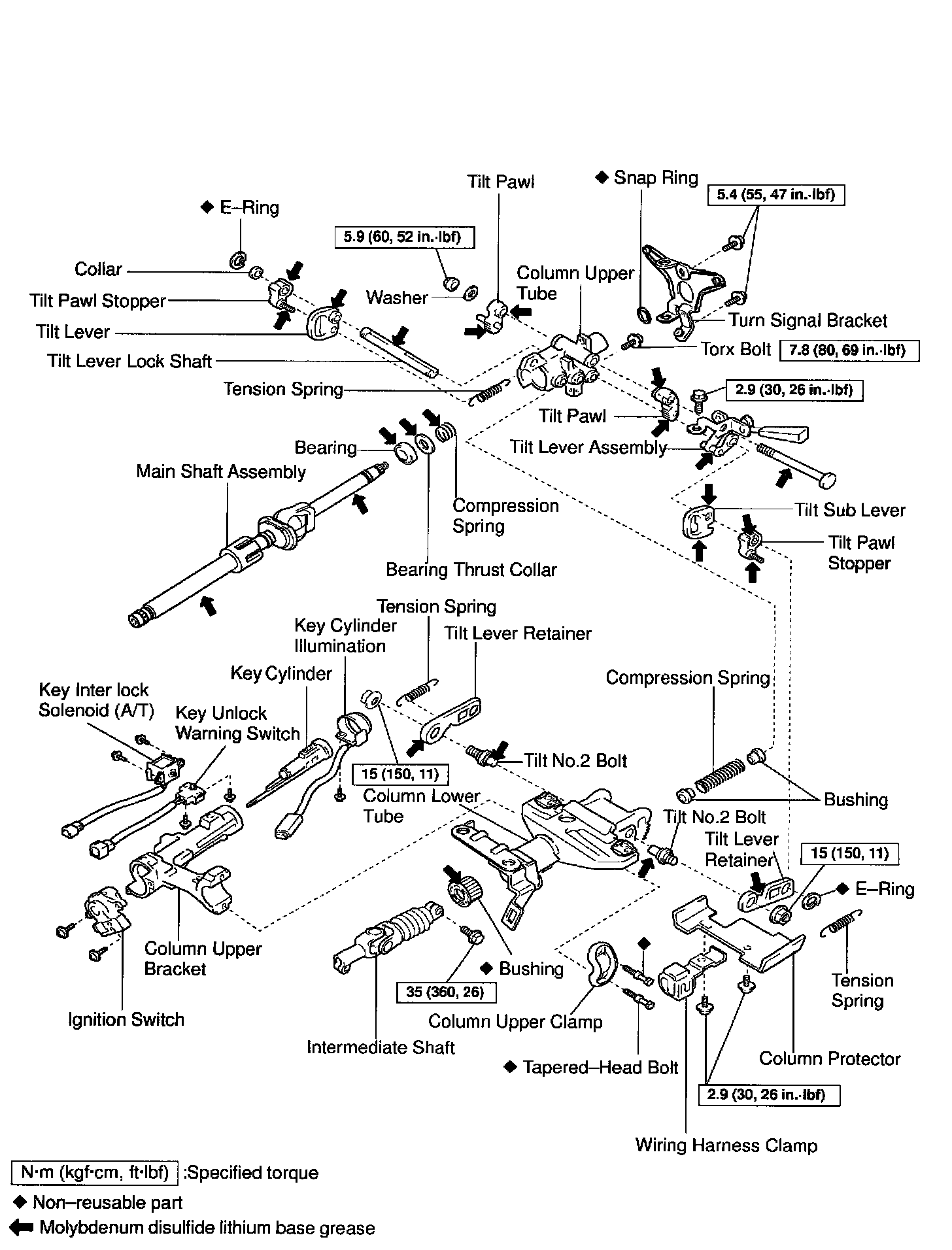

MAIN SHAFT ASSEMBLY, CLAMPS AND BRACKETS
