Celica GT Liftback L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

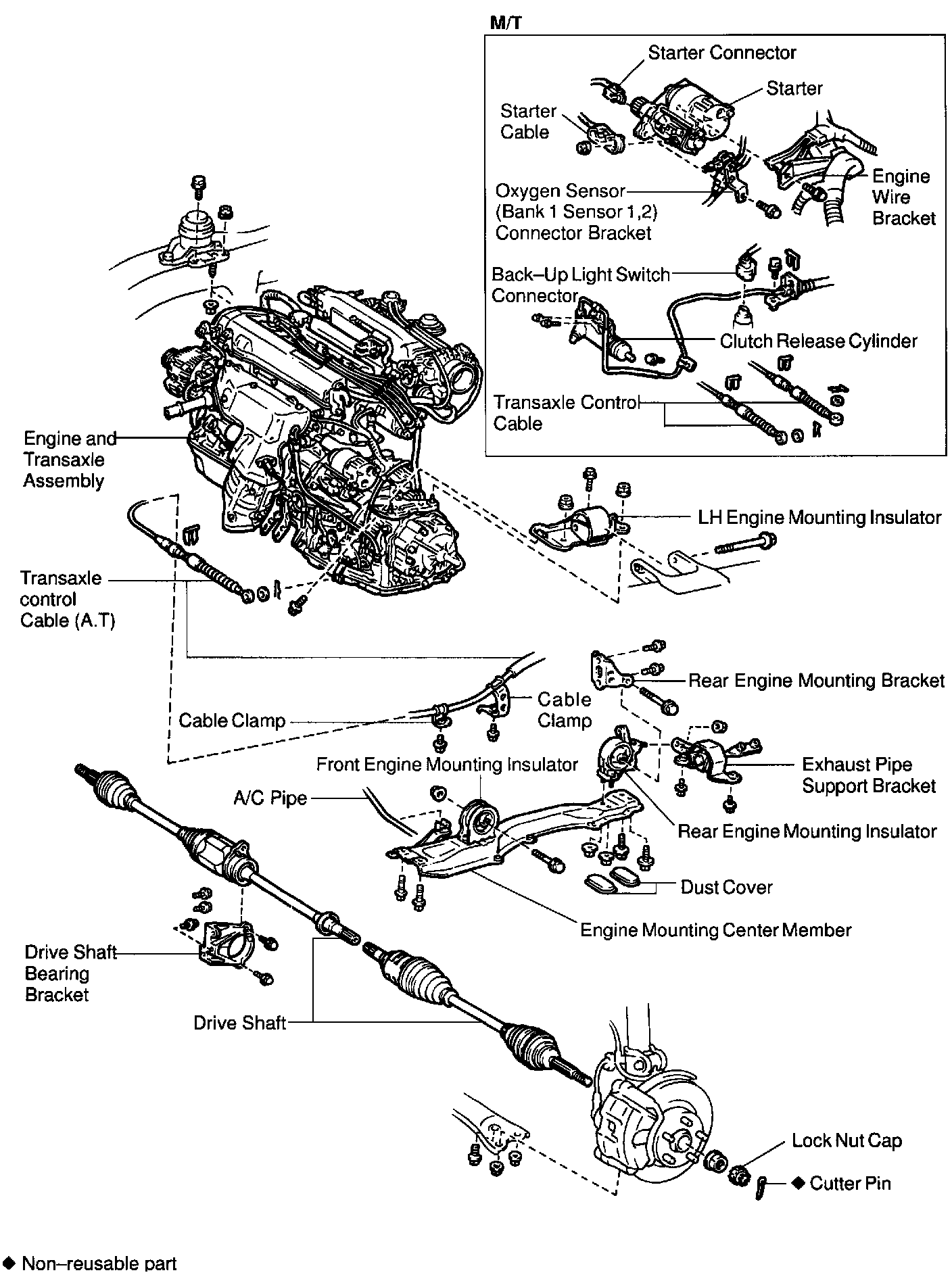

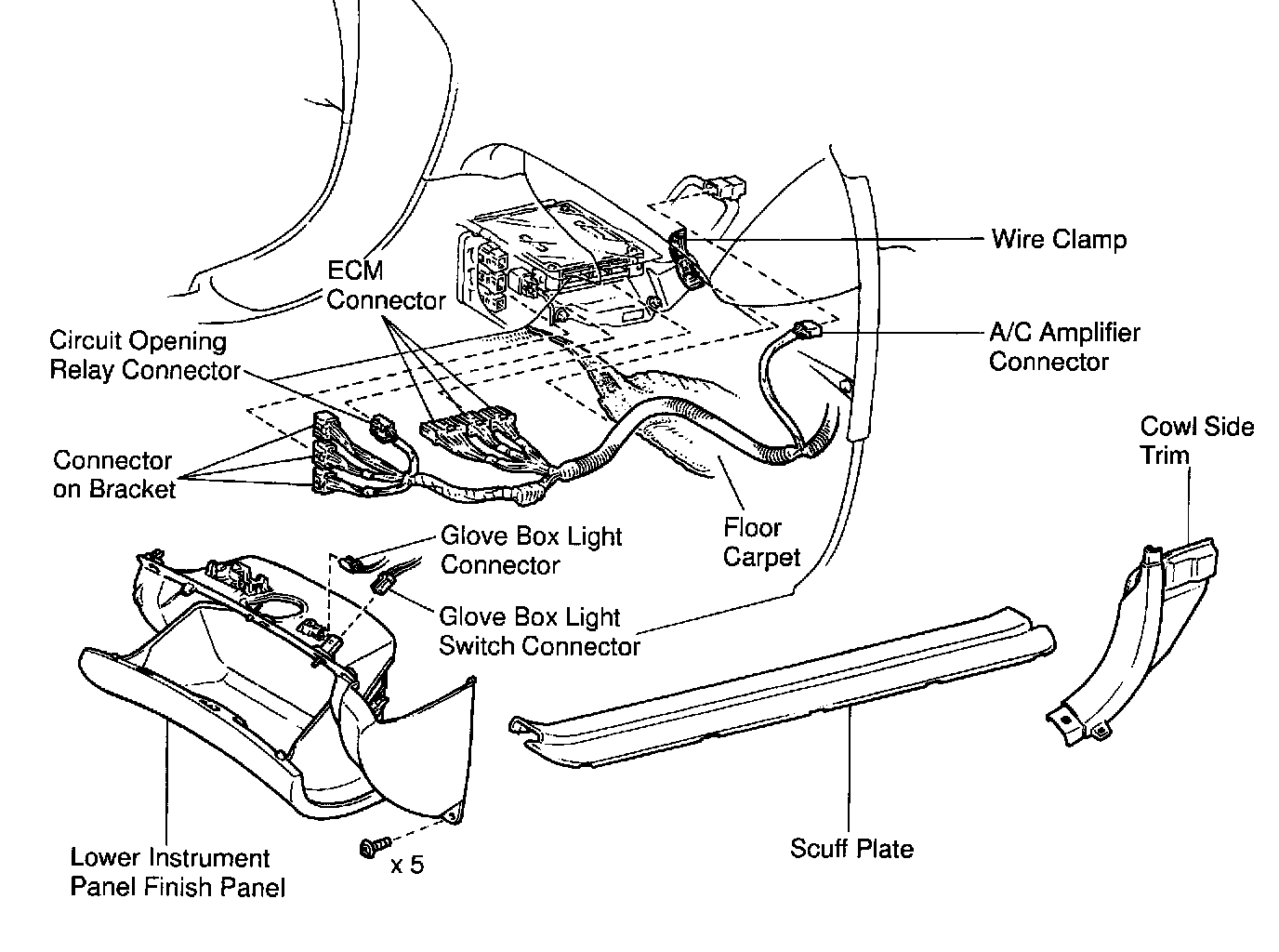

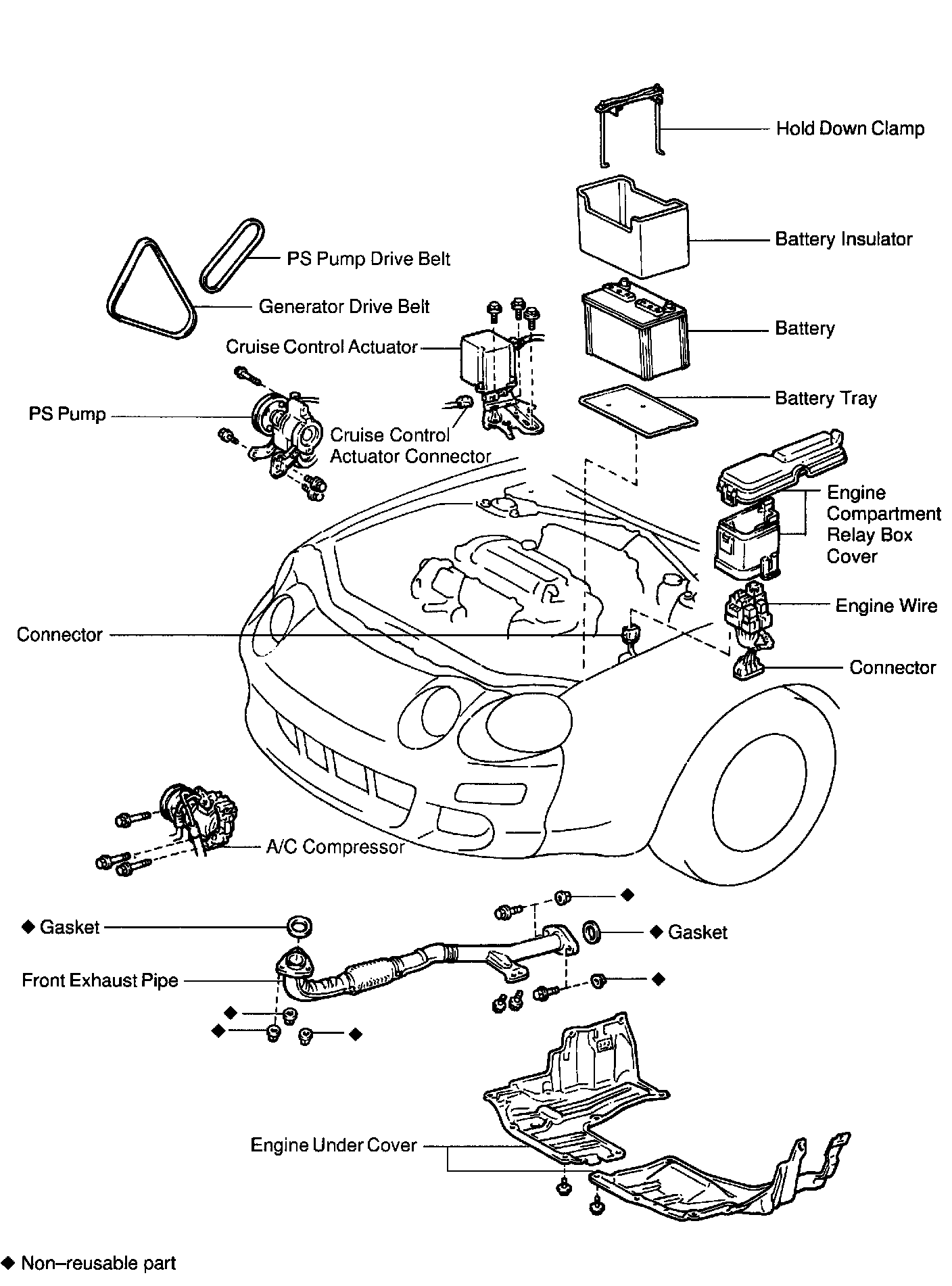

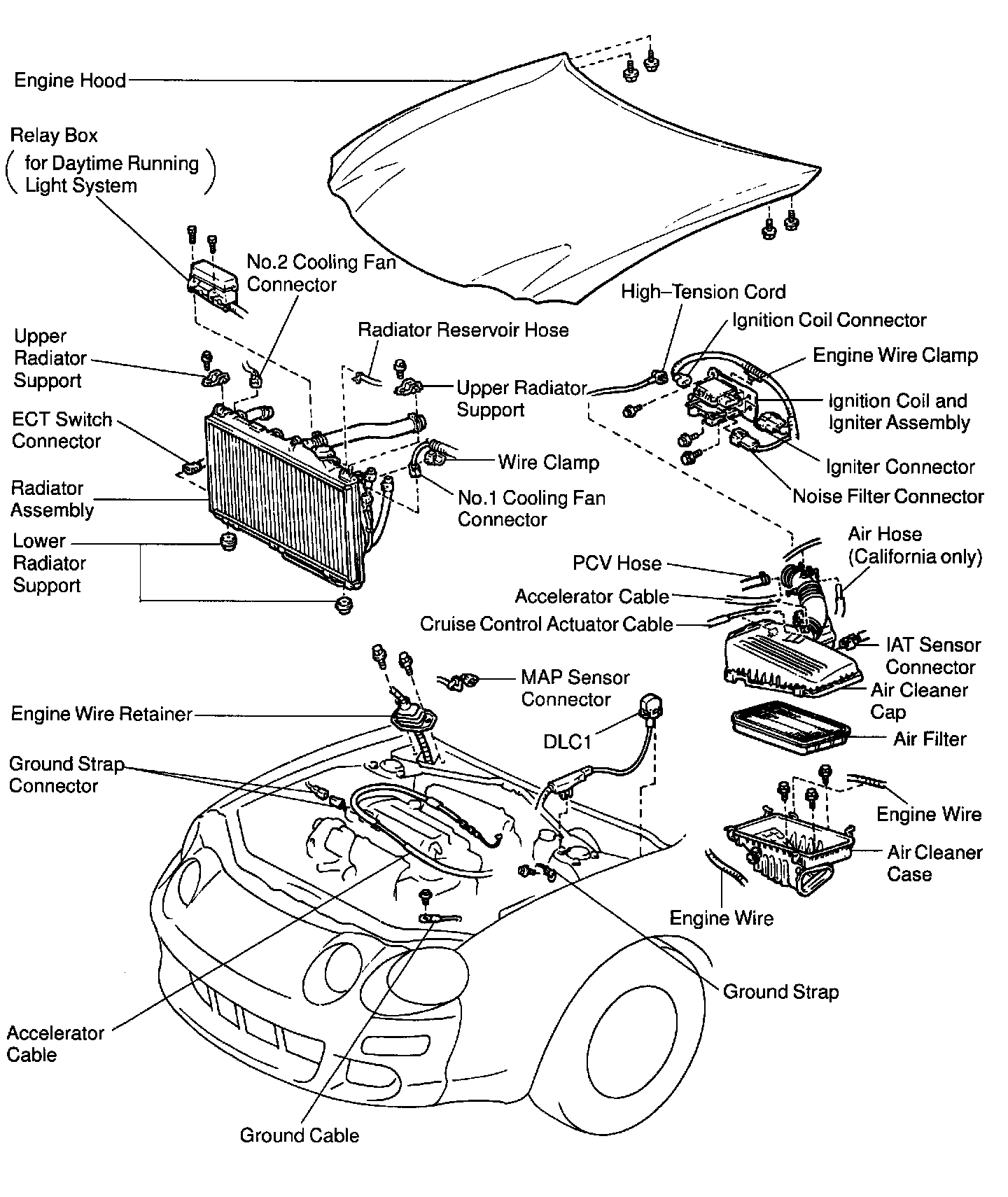

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
