Front

REMOVAL





1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the fender liner.

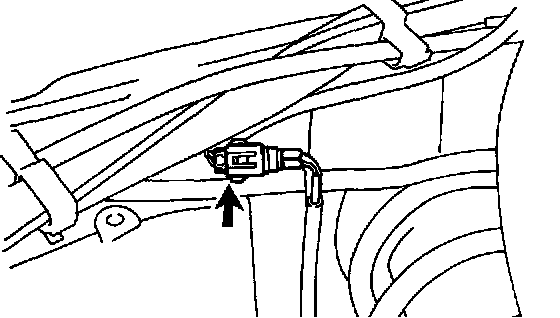

b. Disconnect the speed sensor connector.
2. REMOVE SPEED SENSOR

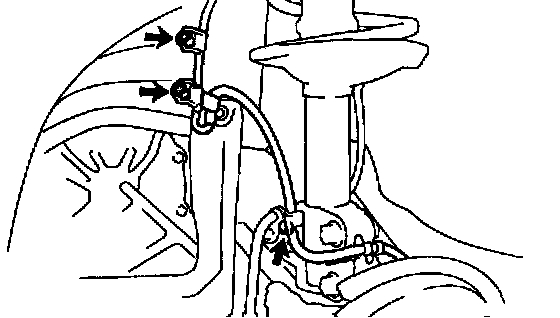

a. Remove the 3 clamp bolts holding the sensor harness from the body and shock absorber.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)

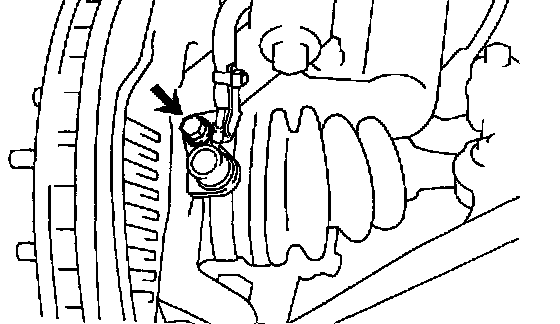

b. Remove the speed sensor installation bolt from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
c. Remove the clamp and speed sensor.

NOTICE: At the time of installation, please refer to the following item.
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.

INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIGNAL
