Blower Motor Linear Controller (Auto A/C)

REMOVAL

1. REMOVE LOWER NO.1 PANEL




2. REMOVE HEATER PROTECTOR
Release the 3 claws and pull out the heater protector.

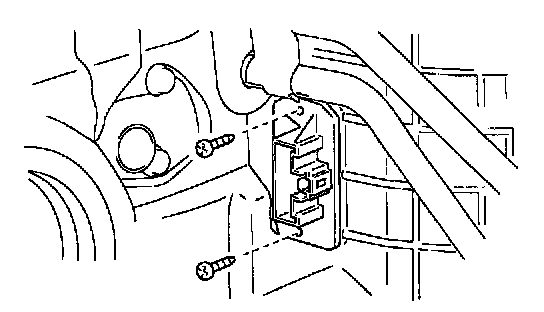

3. REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.
b. Remove the 2 screws and controller.

INSTALLATION

1. INSTALL BLOWER MOTOR LINEAR CONTROLLER
a. Install the controller with the 2 screws.
b. Connect the connector.

2. INSTALL THESE PARTS:
a. Heater Protector
b. Lower No.2 Panel
