O/D Off Indicator Light Remains on

CIRCUIT DESCRIPTION
The O/D main switch contacts go open when the switch is pushed in and go closed when it is pushed out.
In O/D main switch at OFF position, the O/D OFF indicator light lights up, and the ECM prohibits shifting over drive.

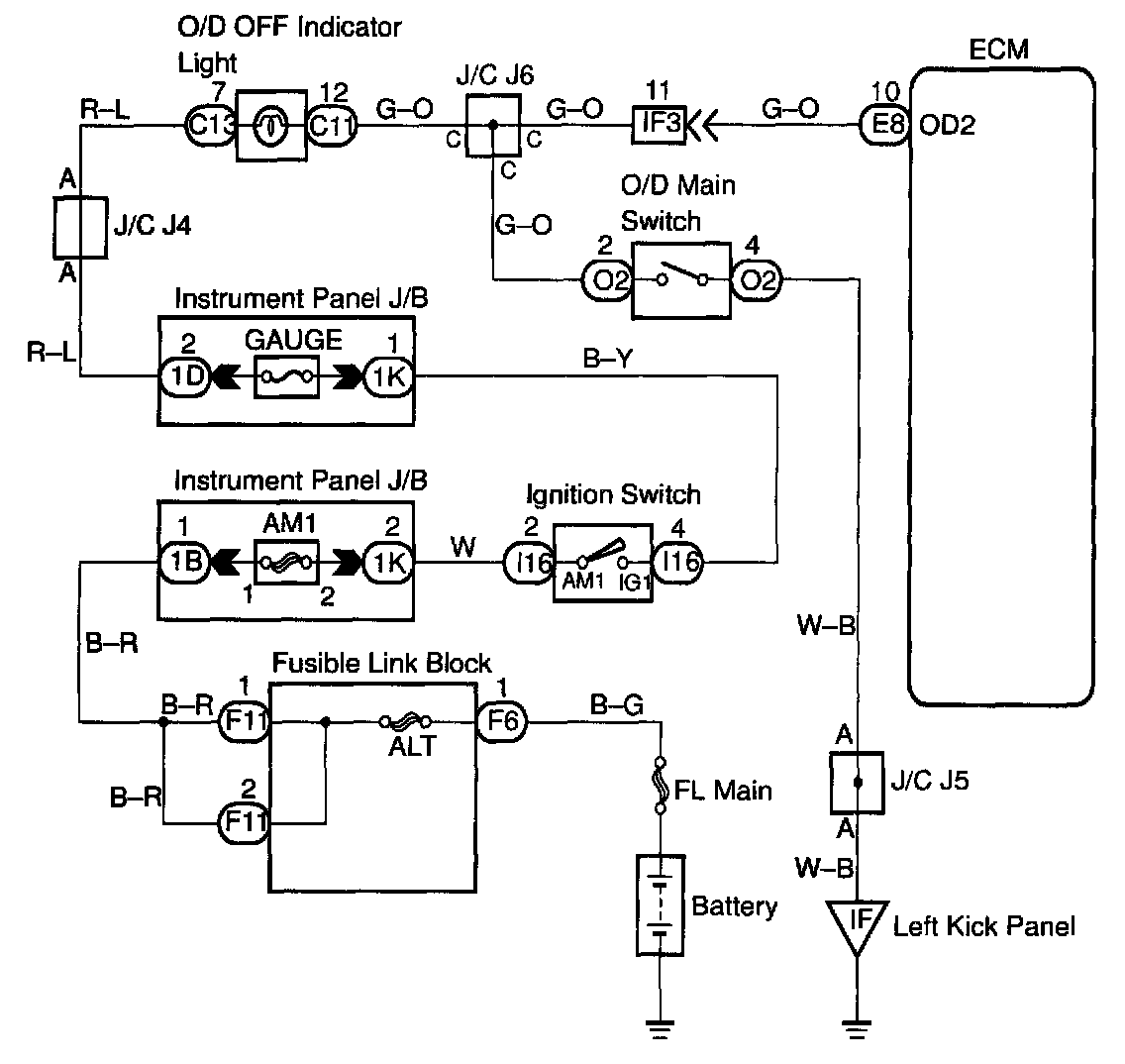

WIRING DIAGRAM

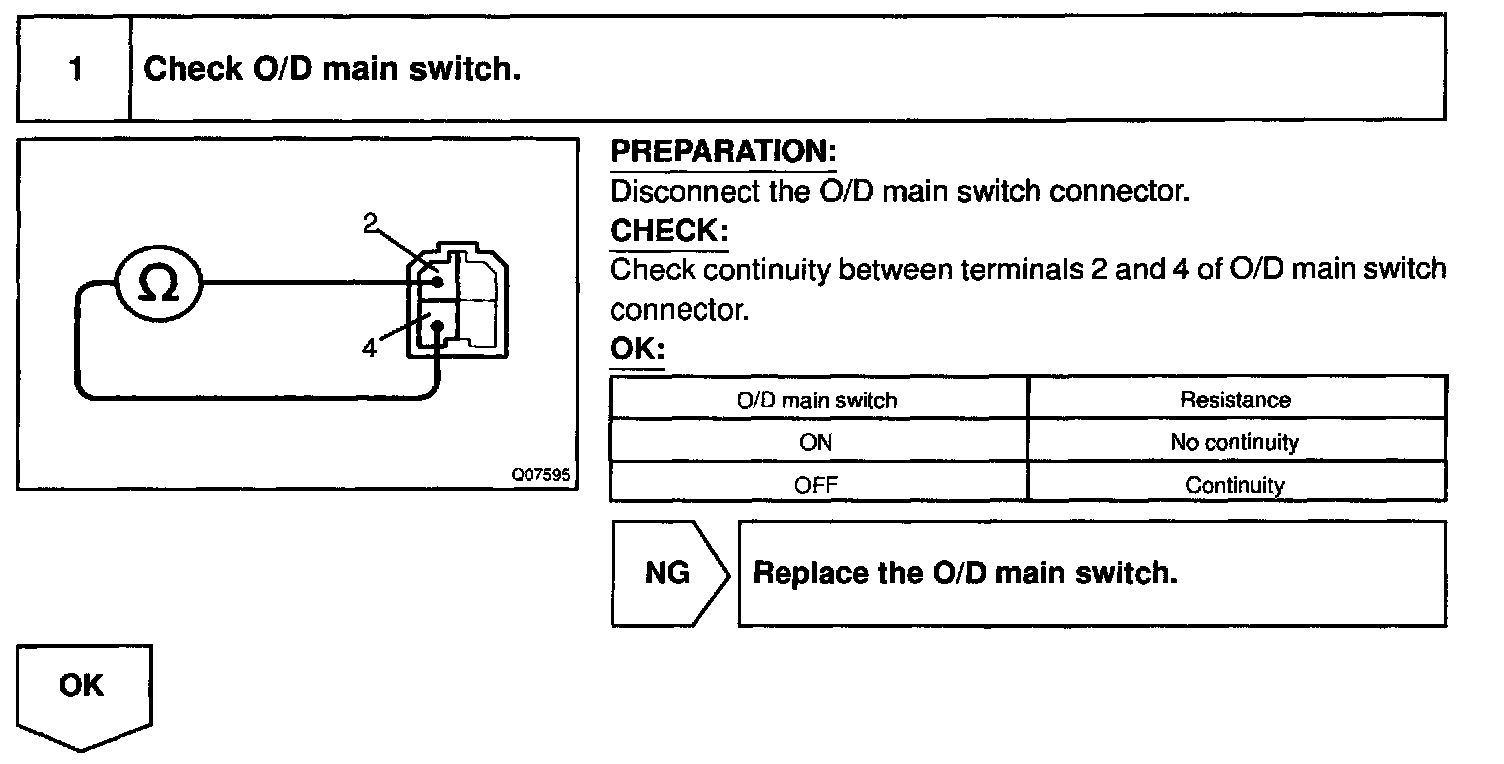

Step 1:

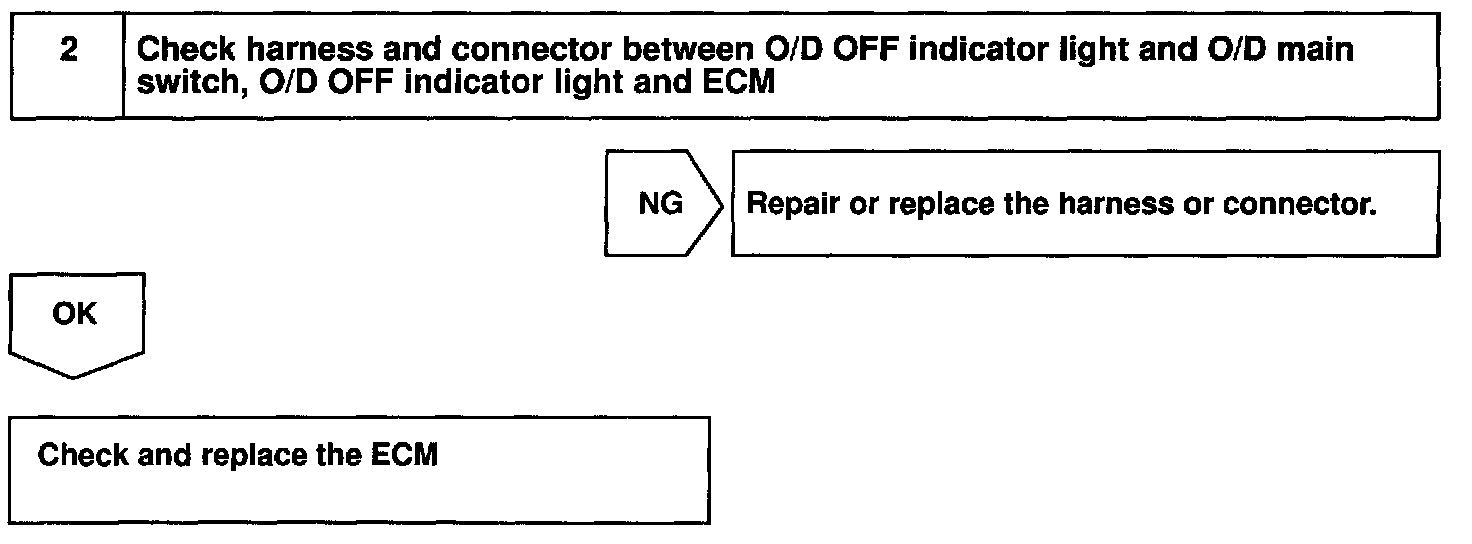

Step 2:

O/D OFF Indicator light remains on

INSPECTION PROCEDURE
