MIL ON - DTC P1133, P1135, P1153, P1155 or P0125 (O2)
ENGINEEG013-98
December 4, 1998
Title:
MIL "ON" DTC P1133, P1135, P1153, P1155, OR P0125
Models:
'99 Camry Solara
Introduction
Some 1999 California specification, 6 cylinder Solaras may experience one or more of the following diagnostic trouble codes: P1133, P1135, P1153, P1155, or P0125. This condition may be caused by an "open" or poor connection in the A/F heater circuit.
Affected Vehicles
^ 1999 Camry Solaras produced before VIN 2T1CF22P*XC104577.
Repair Procedure
1. Disconnect the negative terminal of the battery.

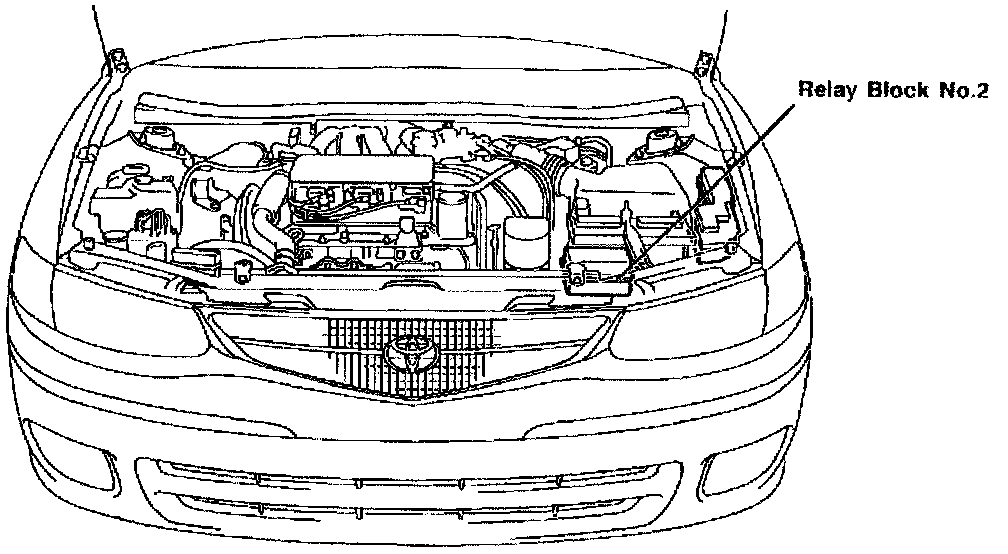

2. Remove relay block # 2 from front of battery bracket.
3. Remove A/F heater relay and bottom cover of relay block.
4. Secure pin terminals # 1 & # 2 in relay block.
5. Reinstall relay, bottom cover, relay block and battery terminal.
6. Confirm proper operation of A/F heater relay circuit.

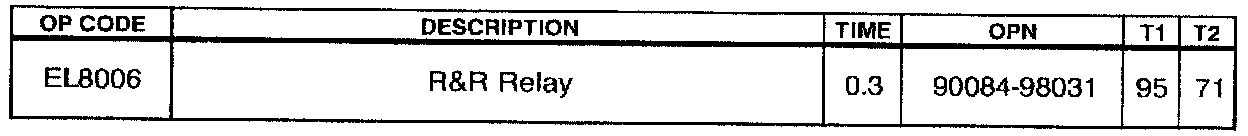

Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
