Idle Speed/Throttle Actuator - Electronic: Service and Repair

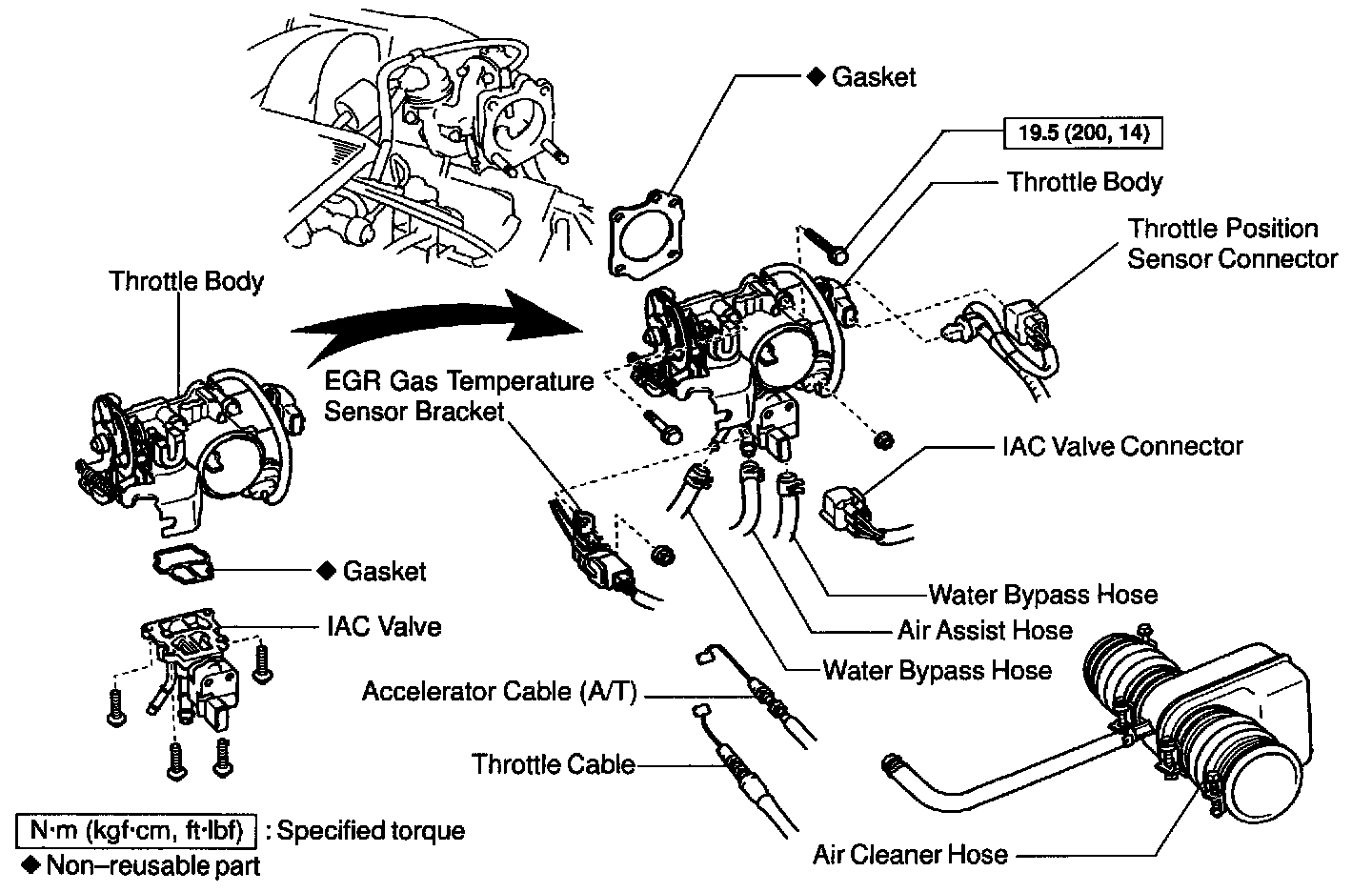

COMPONENTS

REMOVAL
1. REMOVE THROTTLE BODY

2. REMOVE IAC VALVE

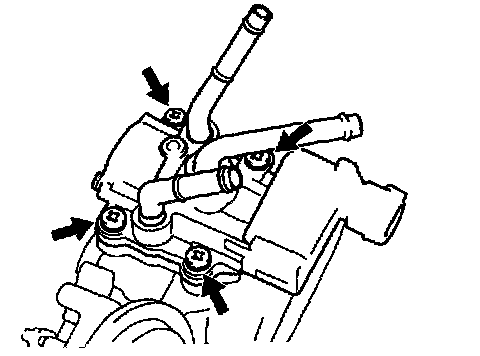

Remove the 4 screws, IAC valve and gasket.

HINT: At the time of installation, please see the items. Place a new gasket on the throttle body.

INSTALLATION
Installation is in the reverse order of removal.
