Alternator

REMOVAL




REMOVE DRIVE BELT

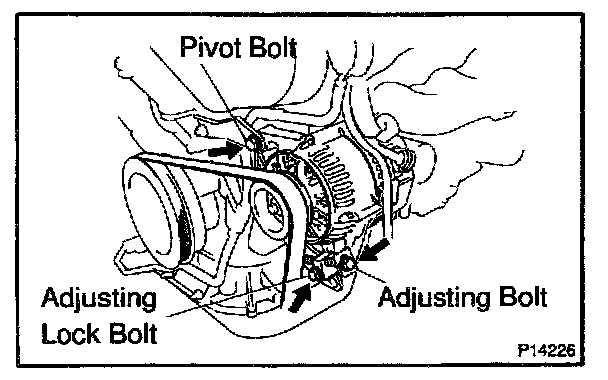

Loosen the pivot bolt, adjusting lock bolt, and adjusting bolt, and remove the drive belt.
Torque:
Pivot bolt: 56 Nm (570 kgf.cm, 41 ft.lbf)
Lock bolt: 18 Nm (180 kgf.cm, 13 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
