Removal and Installation

REMOVAL

1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not to drain out all coolant.

2. DISCONNECT RADIATOR UPPER HOSE




3. REMOVE CONDENSER FAN

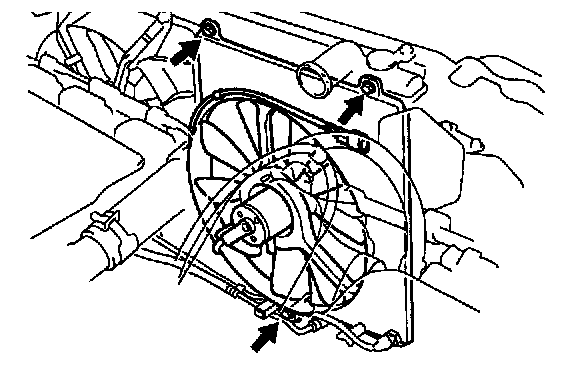

a. Disconnect the connector.
b. Remove the 2 bolts and fan.

INSTALLATION




1. INSTALL CONDENSER FAN

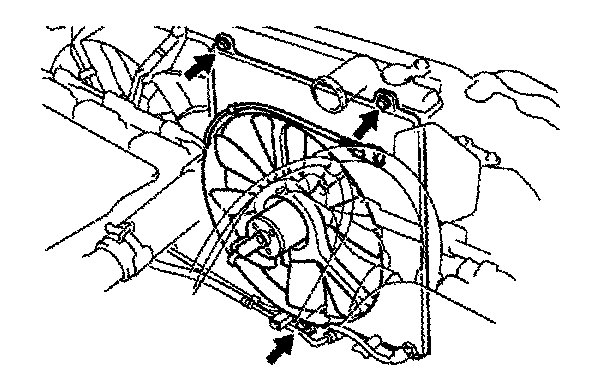

a. Install the condenser fan with the 3 bolts.
Torque: 5.0 Nm (50 kgf.cm, 44 in.lbf)
b. Connect the connector.

2. CONNECT RADIATOR UPPER HOSE
3. FILL WITH ENGINE COOLANT
