Removal and Installation

REMOVAL

1. REMOVE NO.2 UNDER COVER

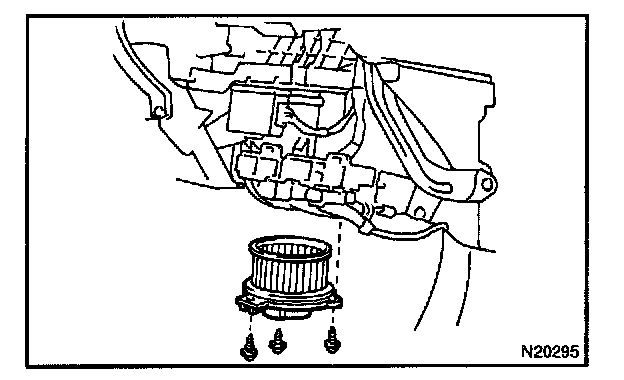

2. REMOVE BLOWER MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

INSTALLATION

1. INSTALL BLOWER MOTOR
a. Install the blower motor with the 3 screws.
b. Connect the connectors.

2. INSTALL NO.2 UNDER COVER
